Micro-Measurements (Division of Vishay Precision Group) 1033-MMF404946-ND
Sku: TT-DKEY-1033-MMF404946-ND
₹66,474.54
Features
- Shipping in 10-12 Working Days
Description of product

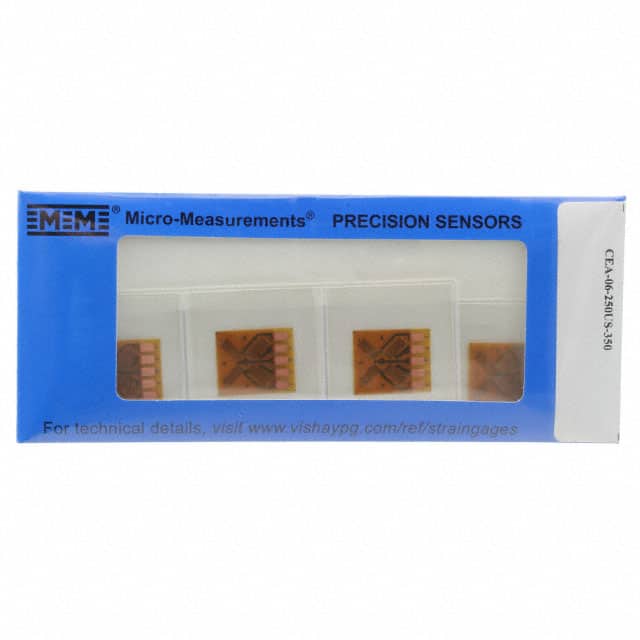

STRAIN GAUGE 350 OHM SHEAR 1=5PC
Product Attributes:
| Series | CEA |
| Product Status | Active |
| Pattern Type | Shear/Torque |
| Strain Range | ±5% |
| Resistance | 350 Ohms |
| Resistance Tolerance | ±0.4% |
| Length - Active | 0.250" (6.35mm) per section |
| Length - Overall Pattern | 0.820" (20.83mm) |
| Length - Overall | 0.96" (24.4mm) |
| Width - Active | 0.120" (3.05mm) per section |
| Width - Overall Pattern | 0.700" (17.78mm) |
| Width - Overall | 0.80" (20.3mm) |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
