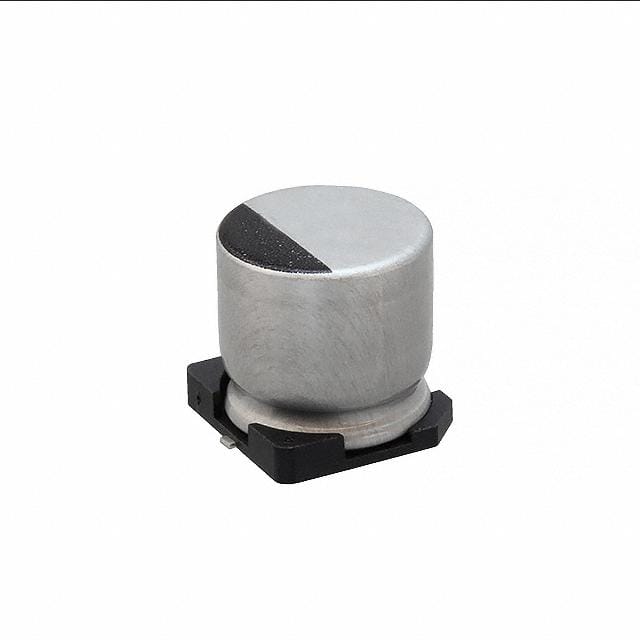

Rubycon 1189-35SGV220M10X10.5TR-ND,1189-35SGV220M10X10.5CT-ND,1189-35SGV220M10X10.5DKR-ND
Sku: TT-DKEY-1189-35SGV220M10X10.5TR-ND,1189-35SGV220M10X10.5CT-ND,1189-35SGV220M10X10.5DKR-ND
₹100.46
Features
- Shipping in 10-12 Working Days
Description of product
CAP ALUM 220UF 20% 35V SMD
Product Attributes:
| Series | SGV |
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
