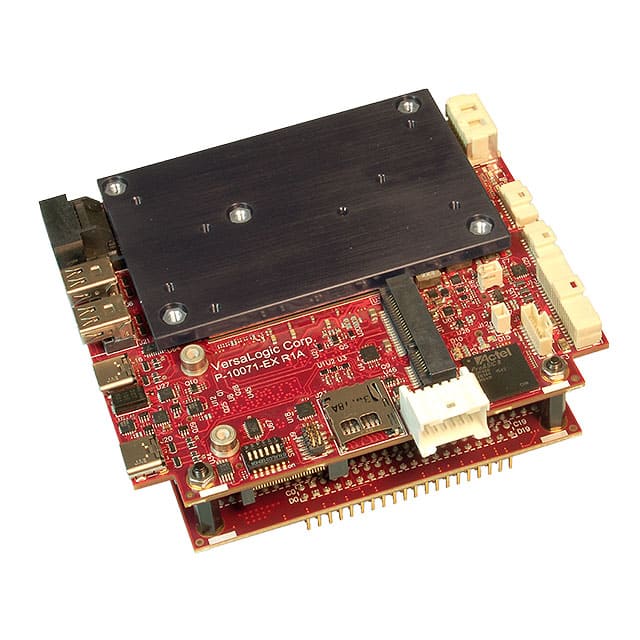

Series | Liger |
Part Status | Active |
Core Processor | Intel Core i7-7600U |
Speed | 3.9GHz |
Number of Cores | 2 |
Power (Watts) | 12.5W |
Cooling Type | Heat plate |
Size / Dimension | 4.23" x 3.77" (108mm x 96mm) |
Form Factor | PC/104 |
Expansion Site/Bus | PC/104-Plus |
RAM Capacity/Installed | 4GB/4GB |
Storage Interface | SATA, Mini PCIe, mSATA, microSD, SPI |
Video Outputs | miniDP |
Ethernet | 10/100/1000Mbps (2) |
USB | USB 2.0 (4), USB 3.0 (2) |
RS-232 (422, 485) | 4 |
Digital I/O Lines | 8 |
Analog Input:Output | - |
Watchdog Timer | Yes |
Operating Temperature | -40°C ~ 85°C |
Series | Liger |
Part Status | Active |
Core Processor | Intel Core i7-7600U |
Speed | 3.9GHz |
Number of Cores | 2 |
Power (Watts) | 12.5W |
Cooling Type | Heat plate |
Size / Dimension | 4.23" x 3.77" (108mm x 96mm) |
Form Factor | PC/104 |
Expansion Site/Bus | PC/104-Plus |
RAM Capacity/Installed | 4GB/4GB |
Storage Interface | SATA, Mini PCIe, mSATA, microSD, SPI |
Video Outputs | miniDP |
Ethernet | 10/100/1000Mbps (2) |
USB | USB 2.0 (4), USB 3.0 (2) |
RS-232 (422, 485) | 4 |
Digital I/O Lines | 8 |
Analog Input:Output | - |
Watchdog Timer | Yes |
Operating Temperature | -40°C ~ 85°C |
