onsemi 15GN03CA-TB-EOSTR-ND,15GN03CA-TB-EOSCT-ND,15GN03CA-TB-EOSDKR-ND
Sku: TT-DKEY-15GN03CA-TB-EOSTR-ND,15GN03CA-TB-EOSCT-ND,15GN03CA-TB-EOSDKR-ND
₹66.24
Features
- Shipping in 10-12 Working Days
Description of product
RF TRANS NPN 10V 1.5GHZ 3CP
Product Attributes:
| Series | - |
| Product Status | Active |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 10V |
| Frequency - Transition | 1.5GHz |
| Noise Figure (dB Typ @ f) | 1.6dB @ 0.4GHz |
| Gain | 13dB @ 0.4GHz |
| Power - Max | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 5V |
| Current - Collector (Ic) (Max) | 70mA |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |

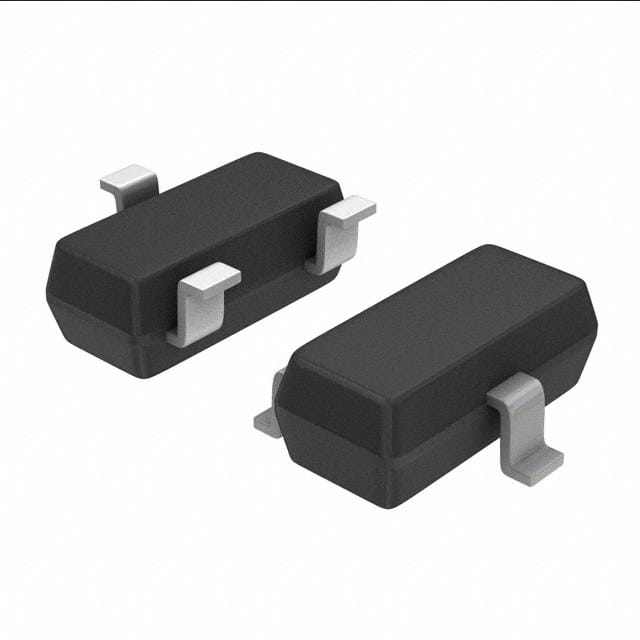

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | 3-CP |
| Grade | - |
| Qualification | - |
