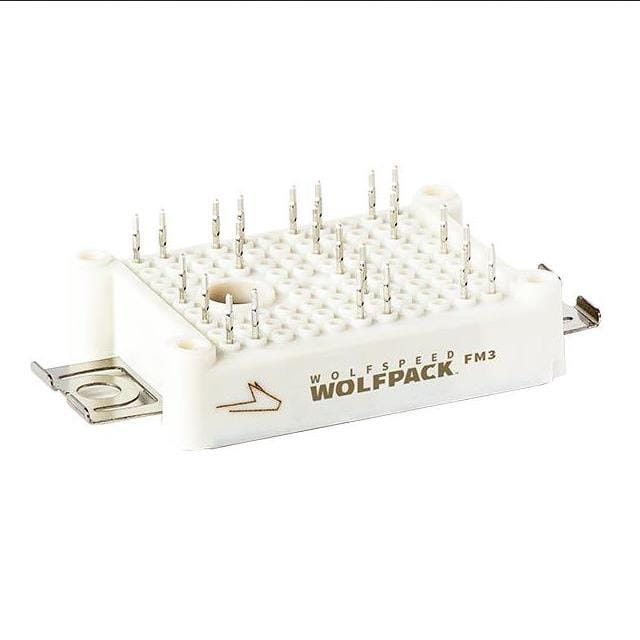

Wolfspeed, Inc. 1697-CCB032M12FM3-ND
Sku: TT-DKEY-1697-CCB032M12FM3-ND
₹26,022.24
Features
- Shipping in 10-12 Working Days
Description of product
SIC 6N-CH 1200V 40A MODULE
Product Attributes:
| Series | WolfPACK™ |
| Product Status | Active |
| Technology | Silicon Carbide (SiC) |
| Configuration | 6 N-Channel (3-Phase Bridge) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 40A |
| Rds On (Max) @ Id, Vgs | 42.6mOhm @ 30A, 15V |
| Vgs(th) (Max) @ Id | 3.6V @ 11.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 118nC @ 15V |
| Input Capacitance (Ciss) (Max) @ Vds | 3400pF @ 800V |
| Power - Max | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
