Nexperia USA Inc. 1727-2277-2-ND,1727-2277-1-ND,1727-2277-6-ND
Sku: TT-DKEY-1727-2277-2-ND,1727-2277-1-ND,1727-2277-6-ND
₹56.16
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N-CH 30V 0.59A 6DFN
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 590mA |
| Rds On (Max) @ Id, Vgs | 670mOhm @ 590mA, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.05nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 30.3pF @ 15V |
| Power - Max | 285mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

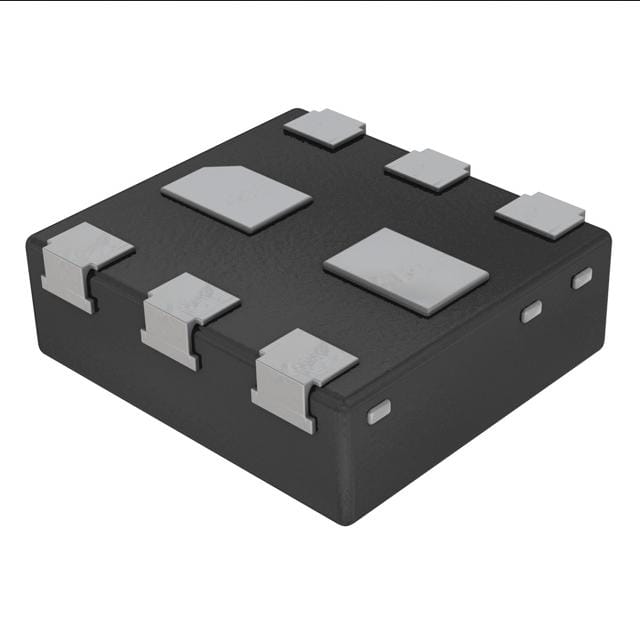

| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1010B-6 |
| Grade | - |
| Qualification | - |
