Nexperia USA Inc. 1727-4786-2-ND,1727-4786-1-ND,1727-4786-6-ND
Sku: TT-DKEY-1727-4786-2-ND,1727-4786-1-ND,1727-4786-6-ND
₹59.04
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N-CH 60V 0.3A 6TSSOP
Product Attributes:
| Series | TrenchMOS™ |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 300mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 10V |
| Power - Max | 295mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |

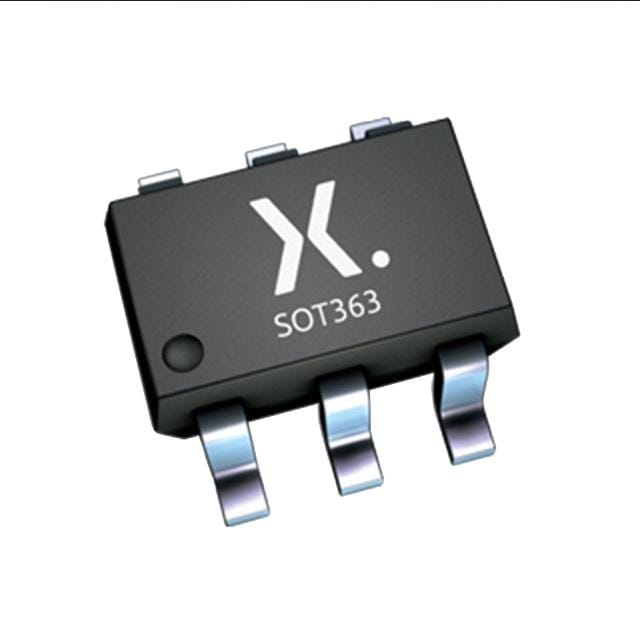

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP |
| Grade | Automotive |
| Qualification | AEC-Q101 |
