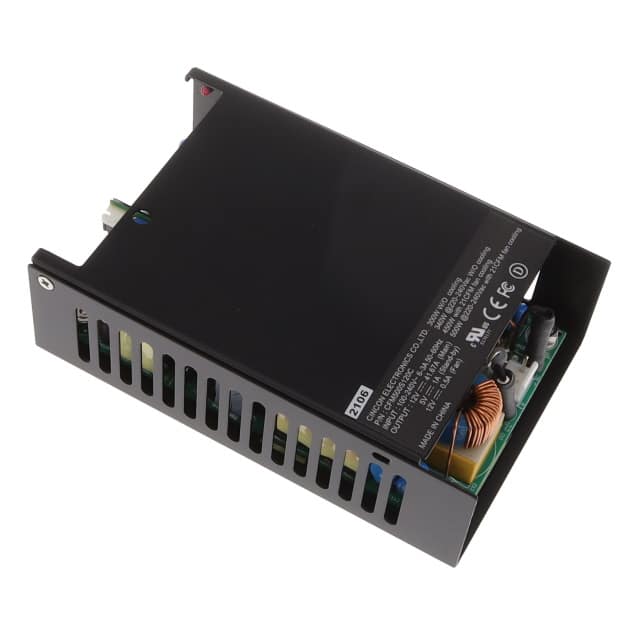

Cincon Electronics Co. LTD 2034-CFM500S120C-ND
Sku: TT-DKEY-2034-CFM500S120C-ND
₹1,717,413.8
Features
- Shipping in 10-12 Working Days
Description of product
AC/DC CONVERTER 12V 330W
Product Attributes:
| Series | CFM500S (500W) |
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 27.5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 330W (500W Forced Air) |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 91.5% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
| Approval Agency | CE, cURus, D-Mark, FCC |
| Standard Number | 60335-1; 62368-1 |
