Lin Engineering 2090-WO-416-06-05-ND
Sku: TT-DKEY-2090-WO-416-06-05-ND
₹7,331.04
Features
- Shipping in 10-12 Working Days
Description of product

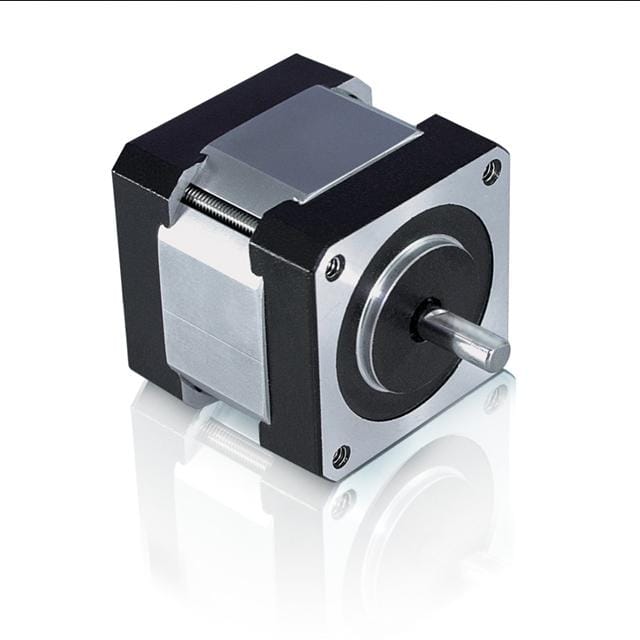

STEPPER MOTOR
Product Attributes:
| Series | - |
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Steps per Revolution | 400.0 |
| Step Angle | 0.9° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 7.3 / 51.55 |
| Size / Dimension | Square - 1.539" L x 1.539" W (39.10mm x 39.10mm) |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 4.7 Ohms |
| Features | Round Shaft |
| Current Rating (Amps) | 600 mA |
| NEMA Frame Size | 17 |
