Lin Engineering 2090-X8718-126-50-RO-ND
Sku: TT-DKEY-2090-X8718-126-50-RO-ND
₹47,692.8
Features
- Shipping in 10-12 Working Days
Description of product

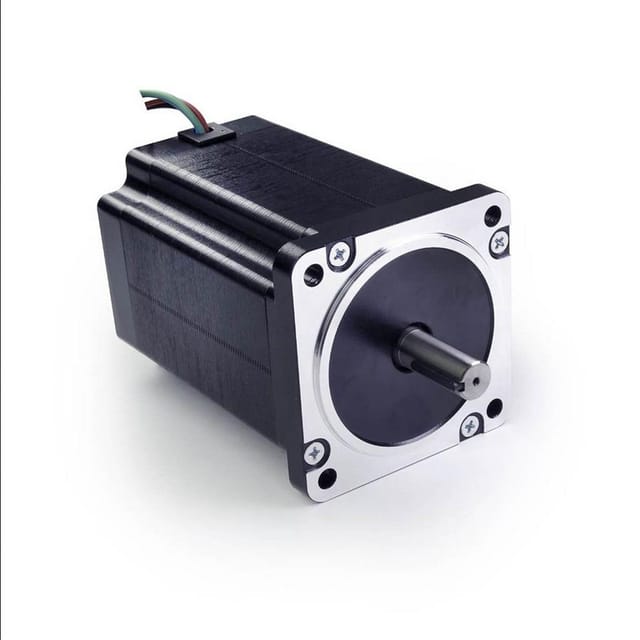

STEPPER MOTOR - NEMA 34
Product Attributes:
| Series | X8718 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 48VDC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 1741.8 / 12300 |
| Size / Dimension | Square - 3.380" x 3.380" (85.85mm x 85.85mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 1.250" (31.75mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 0.72 Ohms |
| Features | Shaft Key Included |
| Current Rating (Amps) | 5 A |
| NEMA Frame Size | 34 |
