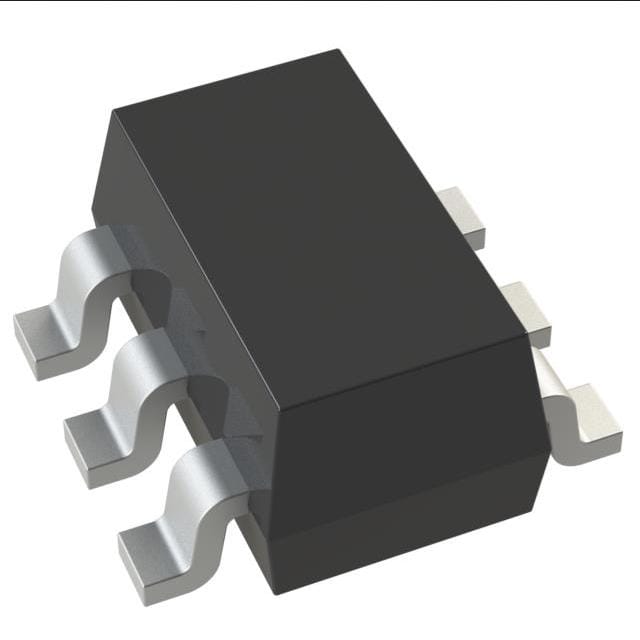

Micro Commercial Co 2N7002DW-TPTR-ND,2N7002DW-TPCT-ND,2N7002DW-TPDKR-ND
Sku: TT-DKEY-2N7002DW-TPTR-ND,2N7002DW-TPCT-ND,2N7002DW-TPDKR-ND
₹38.88
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N-CH 60V 0.115A SOT363
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 115mA |
| Rds On (Max) @ Id, Vgs | 7.5Ohm @ 50mA, 5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V |
| Power - Max | 200mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Grade | - |
| Qualification | - |
