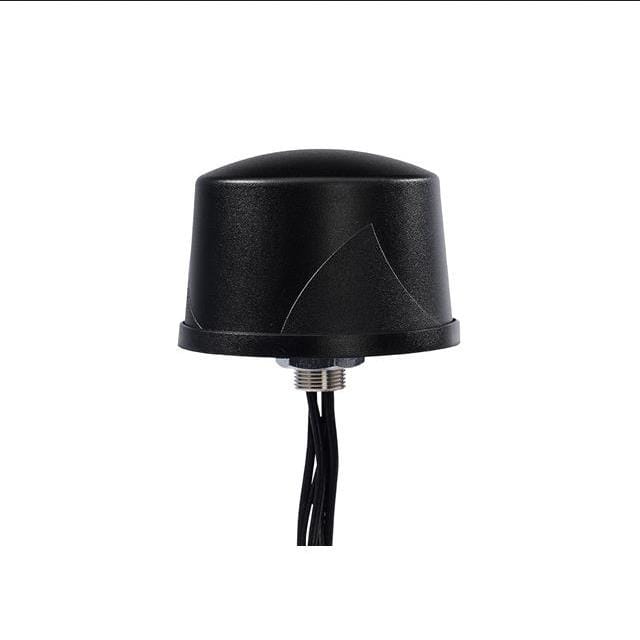

Amphenol PCTEL 3299-GLHPDLTE-SF-ND
Sku: TT-DKEY-3299-GLHPDLTE-SF-ND
₹23,778.72
Features
- Shipping in 10-12 Working Days
Description of product
RF ANT 657.5MHZ DOME SMA MALE
Product Attributes:
| Series | GLHPDLTE-SF |
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz |
| Antenna Type | Dome |
| Number of Bands | 8 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 3.8dBi, 5.2dBi, 6.2dBi, 3dBic, -2dBic, 7.5dBi, 8.9dBi, 5.4dBi, 8.1dBi |
| Power - Max | 50 W |
| Features | Cable - 5.1816m |
| Termination | SMA Male (2) |
| Ingress Protection | IP67 |
| Grade | - |
| Qualification | - |
| Mounting Type | Panel Mount |
| Height (Max) | 3.531" (89.70mm) |
| Applications | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE |
