Cornell Dubilier Knowles 338-2188-2-ND,338-2188-1-ND,338-2188-6-ND
Sku: TT-DKEY-338-2188-2-ND,338-2188-1-ND,338-2188-6-ND
₹778.96
Features
- Shipping in 10-12 Working Days
Description of product

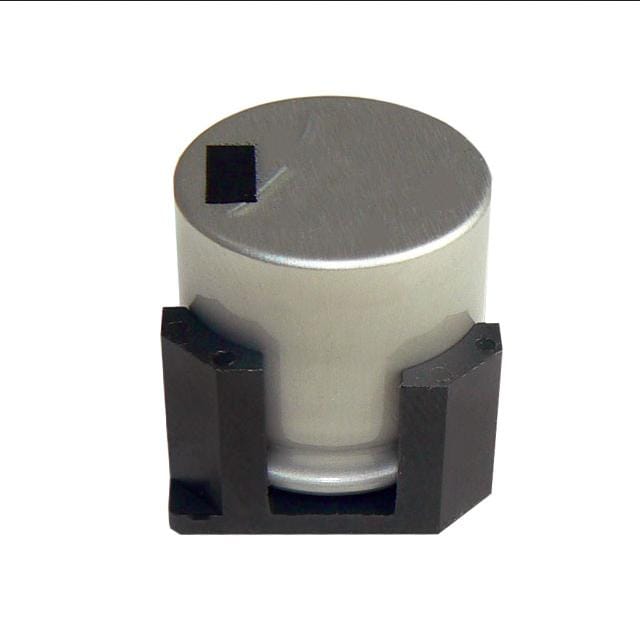

CAP ALUM 330UF 20% 100V SMD
Product Attributes:
| Series | AFK |
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 687.8 mA @ 120 Hz |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.827" W (19.00mm x 21.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 917 mA @ 100 kHz |
| Impedance | 150 mOhms |
