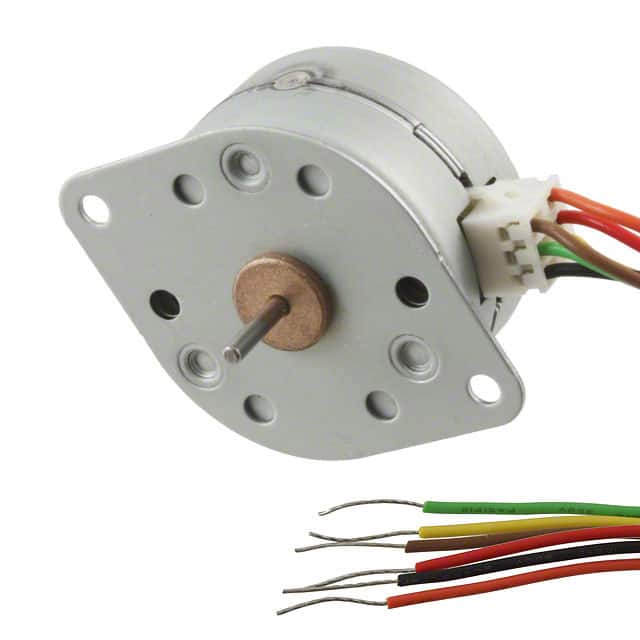

Portescap 403-1001-ND
Sku: TT-DKEY-403-1001-ND
₹4,214.3
SIZE GUIDE
Sold By: tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEPPER MOTOR PM UNIPOLAR 5V
Product Attributes:
| Series | 20M |
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Unipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 100 mA |
| Steps per Revolution | 20 |
| Step Angle | 18° |
| Accuracy | ±12% |
| Torque - Holding (oz-in / mNm) | 1.1 / 7.77 |
| Size / Dimension | Round - 0.807" Dia (20.50mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.059" (1.50mm) |
| Length - Shaft and Bearing | 0.335" (8.50mm) |
| Mounting Hole Spacing | 0.984" (25.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 115.2 Ohms |
| Features | Round Shaft |
