+918023404924 https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.settings/5256837ccc4abf1d39000001/59dafe26aef6e1d20402c4c3-480x480.png" [email protected] 6405cc98dd7e60db047e0f12 Portescap 403-1005-ND https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/6405cc99dd7e60db047e0f34/26m048b1b.jpg
TT-DKEY-403-1005-ND

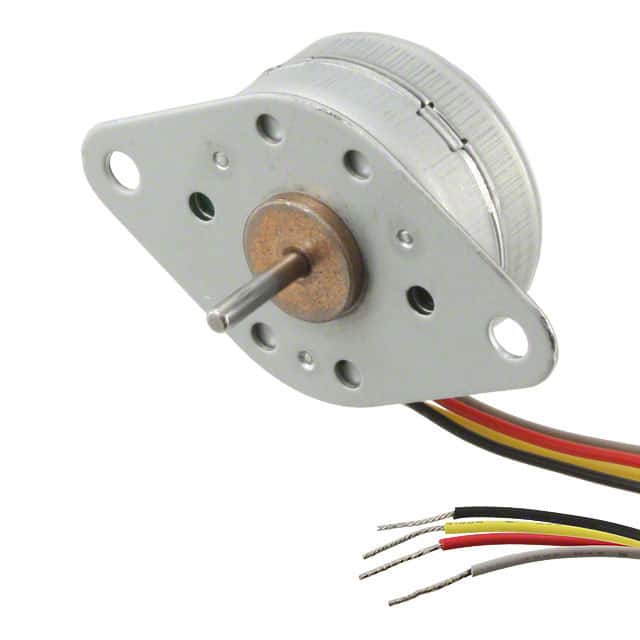

STEPPER MOTOR PM BIPOLAR 5V
Product Attributes:
| Series | 26M |
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 250 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | ±15% |
| Torque - Holding (oz-in / mNm) | 1.5 / 10.6 |
| Size / Dimension | Round - 1.030" Dia (26.16mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.079" (2.00mm) |
| Length - Shaft and Bearing | 0.445" (11.30mm) |
| Mounting Hole Spacing | 1.370" (34.90mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 19.8 Ohms |
| Features | Round Shaft |
in stockINR 4087.35
Portescap
1 1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Portescap 403-1005-ND
Portescap 403-1005-ND
Sku: TT-DKEY-403-1005-ND
₹4,087.35
SIZE GUIDE
Sold By: tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEPPER MOTOR PM BIPOLAR 5V
Product Attributes:
| Series | 26M |
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 250 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | ±15% |
| Torque - Holding (oz-in / mNm) | 1.5 / 10.6 |
| Size / Dimension | Round - 1.030" Dia (26.16mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.079" (2.00mm) |
| Length - Shaft and Bearing | 0.445" (11.30mm) |
| Mounting Hole Spacing | 1.370" (34.90mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 19.8 Ohms |
| Features | Round Shaft |
