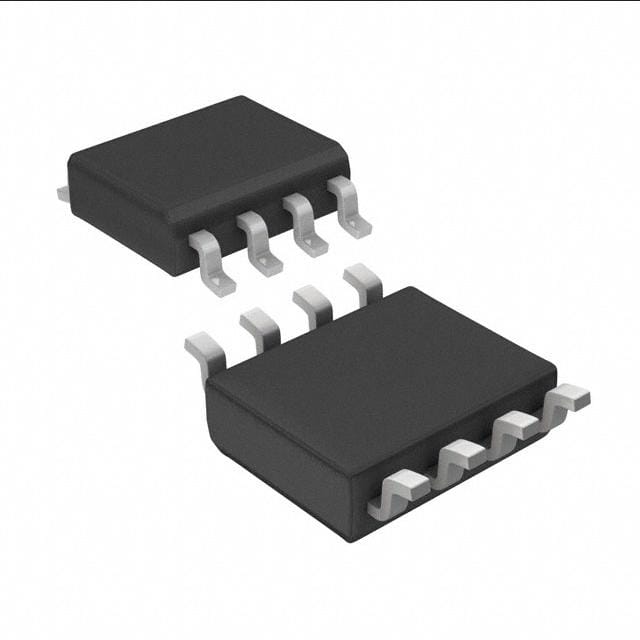

STMicroelectronics 497-17309-2-ND,497-17309-1-ND,497-17309-6-ND
Sku: TT-DKEY-497-17309-2-ND,497-17309-1-ND,497-17309-6-ND
₹213.12
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N-CH 60V 8A 8SO
Product Attributes:
| Series | STripFET™ F6 |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1340pF @ 25V |
| Power - Max | 3.2W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Grade | Automotive |
| Qualification | AEC-Q101 |
