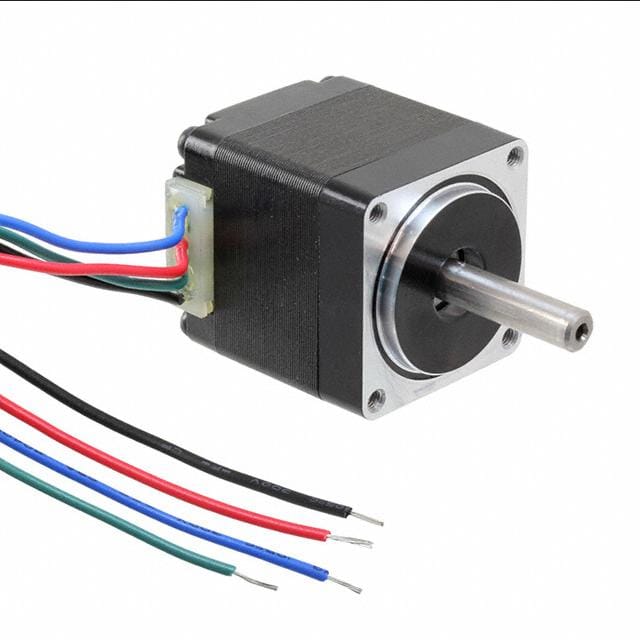

Analog Devices Inc./Maxim Integrated 505-QSH2818-32-07-006-ND
Sku: TT-DKEY-505-QSH2818-32-07-006-ND
₹7,607.52
Features
- Shipping in 10-12 Working Days
Description of product
STEP MOTOR HYBRID BIPOLAR 3.8V
Product Attributes:
| Series | QMot QSH2818 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 3.8VDC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 8.49 / 60 |
| Size / Dimension | Square - 1.100" x 1.100" (28.00mm x 28.00mm) |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.787" (20.00mm) |
| Mounting Hole Spacing | 0.905" (22.98mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 5.6 Ohms |
| Features | Flatted Shaft |
| Current Rating (Amps) | 670 mA |
| NEMA Frame Size | 11 |
