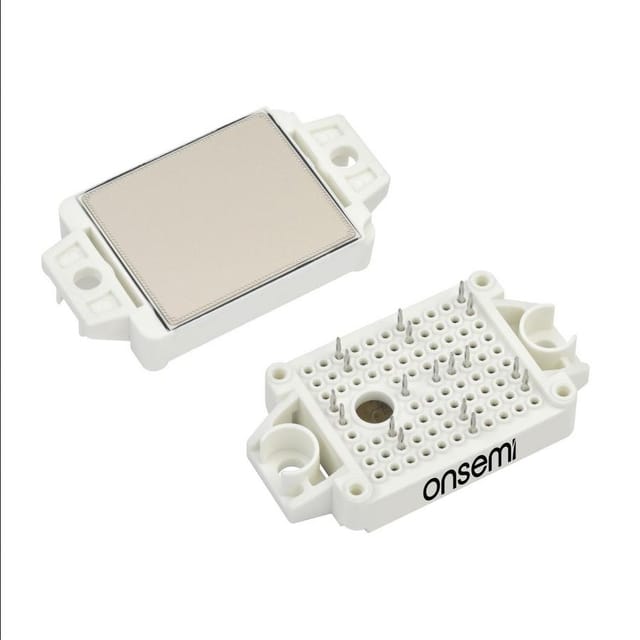

onsemi 5556-NXH010P120MNF1PNG-ND
Sku: TT-DKEY-5556-NXH010P120MNF1PNG-ND
₹17,740.8
Features
- Shipping in 10-12 Working Days
Description of product
SIC 2N-CH 1200V 114A
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | Silicon Carbide (SiC) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 114A (Tc) |
| Rds On (Max) @ Id, Vgs | 14mOhm @ 100A, 20V |
| Vgs(th) (Max) @ Id | 4.3V @ 40mA |
| Gate Charge (Qg) (Max) @ Vgs | 454nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4707pF @ 800V |
| Power - Max | 250W (Tj) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
