NXP USA Inc. 568-BFU550WFTR-ND,568-BFU550WFCT-ND,568-BFU550WFDKR-ND
Sku: TT-DKEY-568-BFU550WFTR-ND,568-BFU550WFCT-ND,568-BFU550WFDKR-ND
₹86.4
Features
- Shipping in 10-12 Working Days
Description of product
RF TRANS NPN 12V 11GHZ SOT323-3
Product Attributes:
| Series | - |
| Product Status | Active |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Frequency - Transition | 11GHz |
| Noise Figure (dB Typ @ f) | 1.3dB @ 1.8GHz |
| Gain | 12dB |
| Power - Max | 450mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 15mA, 8V |
| Current - Collector (Ic) (Max) | 50mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

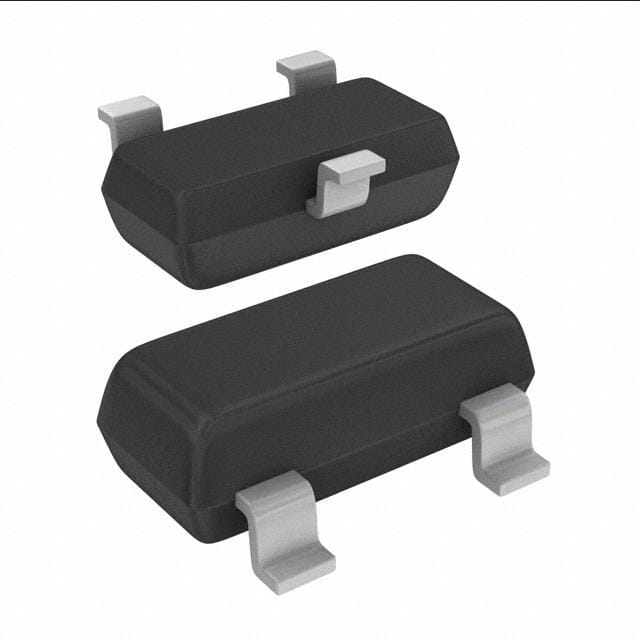

| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70 |
| Grade | - |
| Qualification | - |
