The 74HC00 is a 14 Pin Quad 2-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs.

All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Features:

1. Pin: 14 pin
2. Four Independent NAND Gate
3. 14 Pin IC
4. Operating Temperature to 70°C
5. High-Speed Low Power CMOS Type

Packages Includes:

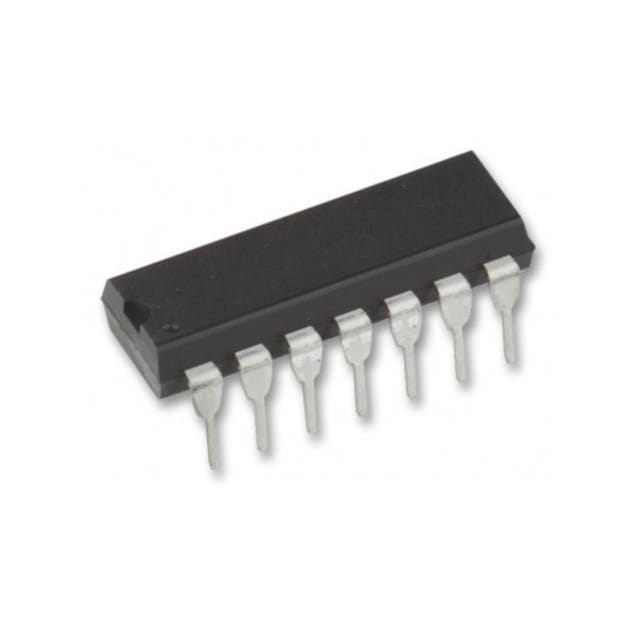

1 x 74HC00 Quad 2-Input NAND Gate IC through hole
