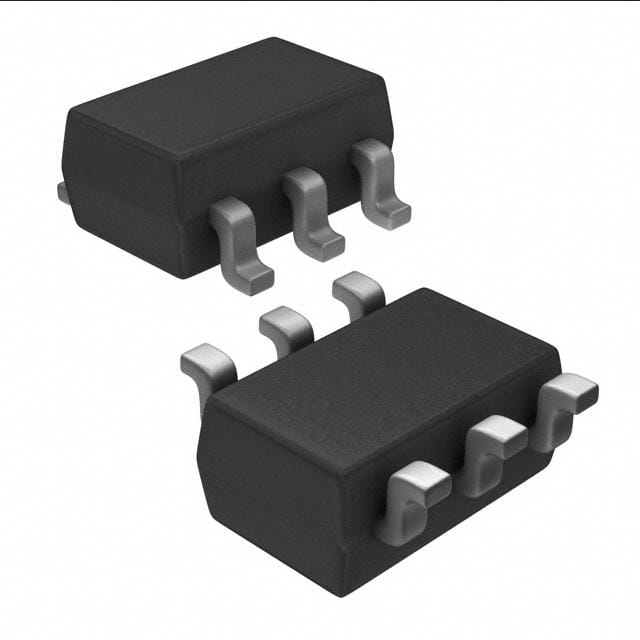

Alpha & Omega Semiconductor Inc. 785-1078-2-ND,785-1078-1-ND,785-1078-6-ND
Sku: TT-DKEY-785-1078-2-ND,785-1078-1-ND,785-1078-6-ND
₹72
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET N/P-CH 20V 3.4A 6TSOP
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel Complementary |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.4A, 2.5A |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 3.4A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 320pF @ 10V |
| Power - Max | 1.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | 6-TSOP |
| Grade | - |
| Qualification | - |
