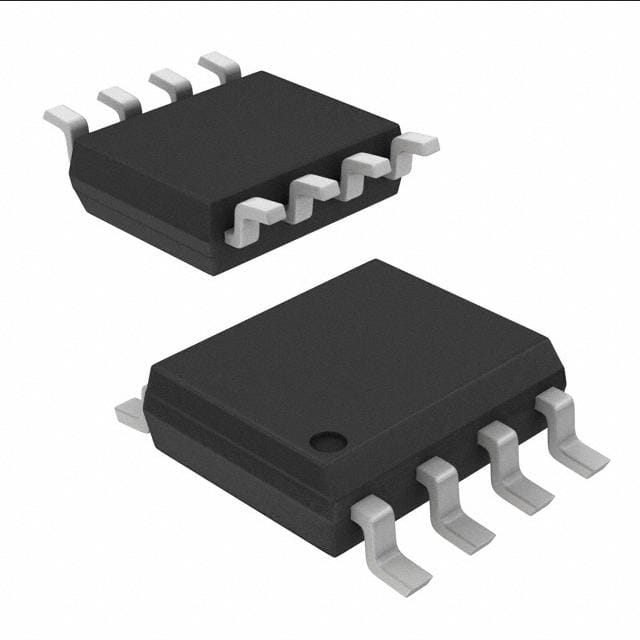

Alpha & Omega Semiconductor Inc. 785-1555-2-ND,785-1555-1-ND,785-1555-6-ND
Sku: TT-DKEY-785-1555-2-ND,785-1555-1-ND,785-1555-6-ND
₹43.2
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET N/P-CH 30V 6A/5.5A 8SOIC
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel, Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 6A, 5.5A |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.3nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 310pF @ 15V |
| Power - Max | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Grade | - |
| Qualification | - |
