Alpha & Omega Semiconductor Inc. 785-1586-2-ND,785-1586-1-ND,785-1586-6-ND
Sku: TT-DKEY-785-1586-2-ND,785-1586-1-ND,785-1586-6-ND
₹48.96
Features
- Shipping in 10-12 Working Days
Description of product

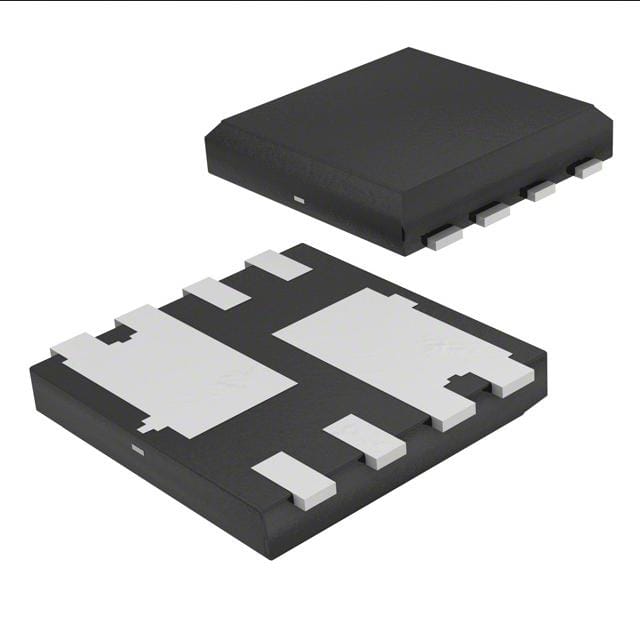

MOSFET 2N-CH 30V 9A 8DFN
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 9A |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 888pF @ 15V |
| Power - Max | 3.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSMD, Flat Leads |
| Supplier Device Package | 8-DFN (3x3) |
| Grade | - |
| Qualification | - |
