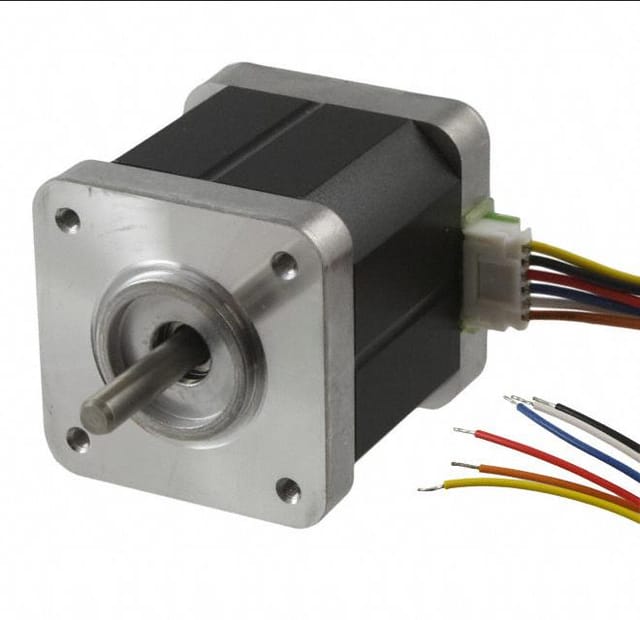

NMB Technologies Corporation 942-17PY-Z455-99VS-ND
Sku: TT-DKEY-942-17PY-Z455-99VS-ND
₹5,531.04
Features
- Shipping in 10-12 Working Days
Description of product
STEP MOTOR HYBRID DUAL SHAFT 24V
Product Attributes:
| Series | 17PY |
| Product Status | Active |
| Type | Hybrid, Dual Shaft |
| Coil Type | Unipolar |
| Voltage - Rated | 24VDC |
| Steps per Revolution | 400.0 |
| Step Angle | 0.9° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 46.74 / 330 |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.787" (20.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 7.3 Ohms |
| Features | Flatted Shaft |
| Current Rating (Amps) | 800 mA |
| NEMA Frame Size | 17 |
