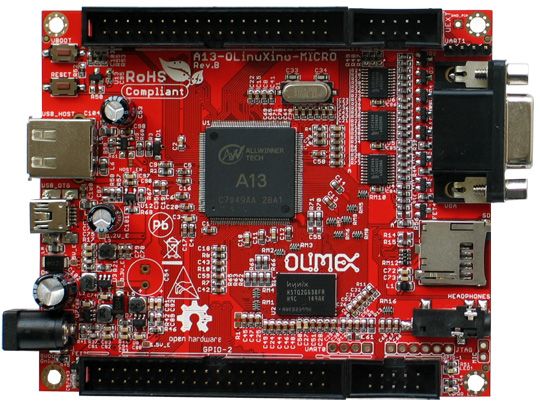

5c9b664d915e7f5411daa229 A13-OLinuXino-MICRO https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5c9b664d915e7f5411daa229/images/5c9b664d915e7f5411daa22a/5c9b65c5143cad538ddee1ab/5c9b65c5143cad538ddee1ab.jpg

Description

A13-OLinuXino is a low-cost single-board Linux computer in a very compact form. It uses the very first Cortex A8 processor available in the eLQFP176 package, produced by Allwinner Technology Inc A13.

Features

  • A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
  • 256 MB RAM (128Mbit x 16)
  • 5VDC input power supply with own ICs, noise immune design
  • 1 USB host
  • 1 USB OTG which can power the board
  • SD-card connector for booting the Linux image
  • VGA video output
  • LCD signals available on connector so you still can use LCD if you disable VGA/HDMI
  • Audio output
  • Microphone input pads (no connector)
  • 1 User key
  • 4 Mount holes
  • UEXT connectorfor connecting additional UEXT modules like Zigbee, Bluetooth, Relays, etc
  • GPIO connector with 68/74 pins and these signals:
    • 17 for adding NAND flash;
    • 22 for connecting LCDs;
    • 20+4 including 8 GPIOs which can be input, output, interrupt sources;
    • 3x I2C;
    • 2x UARTs;
    • SDIO2 for connecting SDcards and modules;
    • 5 system pins: +5V, +3.3V, GND, RESET, NMI
  • Dimensions: 100 x 85 mm (3.950x3.350'')
  • Optional low-cost 7" LCD with touchscreen
TT-OLI-A13MICRO(OLinuXino)
out of stock INR
OLIMEX
1 1
A13-OLinuXino-MICRO

A13-OLinuXino-MICRO

Sku: TT-OLI-A13MICRO(OLinuXino)
Be the first to review this product
Sold Out
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5c9b664d915e7f5411daa229/images/5c9b664d915e7f5411daa22a/5c9b65c5143cad538ddee1ab/5c9b65c5143cad538ddee1ab.jpg

Description of product

Description

A13-OLinuXino is a low-cost single-board Linux computer in a very compact form. It uses the very first Cortex A8 processor available in the eLQFP176 package, produced by Allwinner Technology Inc A13.

Features

  • A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
  • 256 MB RAM (128Mbit x 16)
  • 5VDC input power supply with own ICs, noise immune design
  • 1 USB host
  • 1 USB OTG which can power the board
  • SD-card connector for booting the Linux image
  • VGA video output
  • LCD signals available on connector so you still can use LCD if you disable VGA/HDMI
  • Audio output
  • Microphone input pads (no connector)
  • 1 User key
  • 4 Mount holes
  • UEXT connectorfor connecting additional UEXT modules like Zigbee, Bluetooth, Relays, etc
  • GPIO connector with 68/74 pins and these signals:
    • 17 for adding NAND flash;
    • 22 for connecting LCDs;
    • 20+4 including 8 GPIOs which can be input, output, interrupt sources;
    • 3x I2C;
    • 2x UARTs;
    • SDIO2 for connecting SDcards and modules;
    • 5 system pins: +5V, +3.3V, GND, RESET, NMI
  • Dimensions: 100 x 85 mm (3.950x3.350'')
  • Optional low-cost 7" LCD with touchscreen
