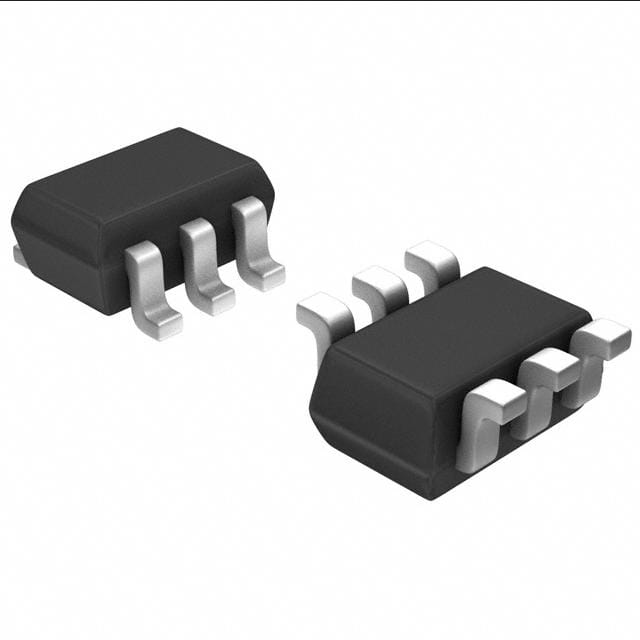

Infineon Technologies BSD223PH6327XTSA1TR-ND,BSD223PH6327XTSA1CT-ND,BSD223PH6327XTSA1DKR-ND
Sku: TT-DKEY-BSD223PH6327XTSA1TR-ND,BSD223PH6327XTSA1CT-ND,BSD223PH6327XTSA1DKR-ND
₹38.88
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2P-CH 20V 0.39A SOT363
Product Attributes:
| Series | OptiMOS™ |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 390mA |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 390mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 1.5µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.62nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 56pF @ 15V |
| Power - Max | 250mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VSSOP, SC-88, SOT-363 |
| Supplier Device Package | PG-SOT363-6-1 |
| Grade | - |
| Qualification | - |
