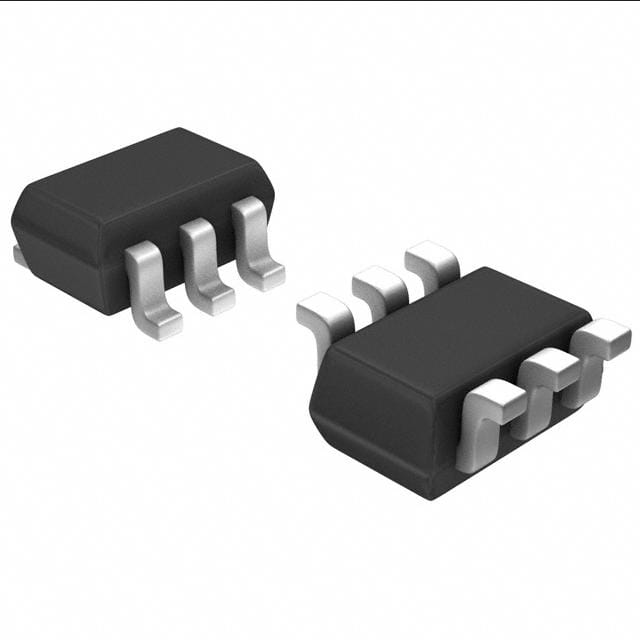

Infineon Technologies BSD840NH6327XTSA1TR-ND,BSD840NH6327XTSA1CT-ND,BSD840NH6327XTSA1DKR-ND
Sku: TT-DKEY-BSD840NH6327XTSA1TR-ND,BSD840NH6327XTSA1CT-ND,BSD840NH6327XTSA1DKR-ND
₹64.8
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N-CH 20V 0.88A SOT363
Product Attributes:
| Series | OptiMOS™ |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 880mA |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 880mA, 2.5V |
| Vgs(th) (Max) @ Id | 750mV @ 1.6µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.26nC @ 2.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 78pF @ 10V |
| Power - Max | 500mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VSSOP, SC-88, SOT-363 |
| Supplier Device Package | PG-SOT363-PO |
| Grade | - |
| Qualification | - |
