This current transducer features closed-loop (compensated) measurement with a DC ±15~24V supply voltage. It accurately measures DC, AC, and pulse currents with galvanic isolation. It offers high accuracy, good linearity, easy installation, low-temperature drift, and optimized response time with high immunity to interference.

Note: If you require customized products, please feel free to contact us at [email protected].

Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Closed-loop (compensated) current transducer
2. Supply voltage: DC ±15~24V
3. Capable measurement of currents: DC, AC,pulse with galvanic isolation between primary circuit and secondary circuit.
4. High accuracy
5. Very good linearity
6. Easy installation
7. Low-temperature drift
8. Optimized response time
9. High immunity to external interference

Applications:

1. The application of variable frequency electrical appliances
2. AC/DC variable-speed drive
3. Uninterruptible Power Supplies (UPS)
4. Switched Mode Power Supplies (SMPS)
5. Inverter applications

Package Includes:

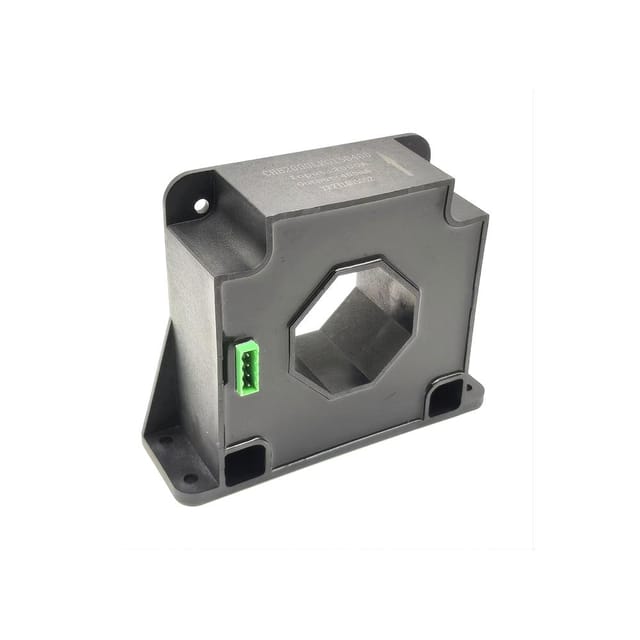

1 x Hall Effect Current Sensor – CHB2000LFG15D400 (Measuring range 0～±3500A)
