This current transducer features closed-loop (compensated) measurement with a DC ±15~24V supply voltage. It accurately measures DC, AC, and pulse currents with galvanic isolation. It offers high accuracy, good linearity, easy installation, low temperature drift, and optimized response time with high immunity to interference.

Note: If you require customized products, please feel free to contact us at [email protected].

Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Closed-loop (compensated) current transducer
2. Supply voltage: DC ±15~24V
3. Capable measurement of currents: DC, AC,pulse with galvanic isolation between primary circuit and secondary circuit.
4. High accuracy
5. Very good linearity
6. Easy installation
7. Low-temperature drift
8. Optimized response time
9. High immunity to external interference

Applications:

1. Variable speed drives
2. Welding machine
3.  Battery supplied applications
4. Uninterruptible Power Supplies
5.  Electrochemical

Package Includes:

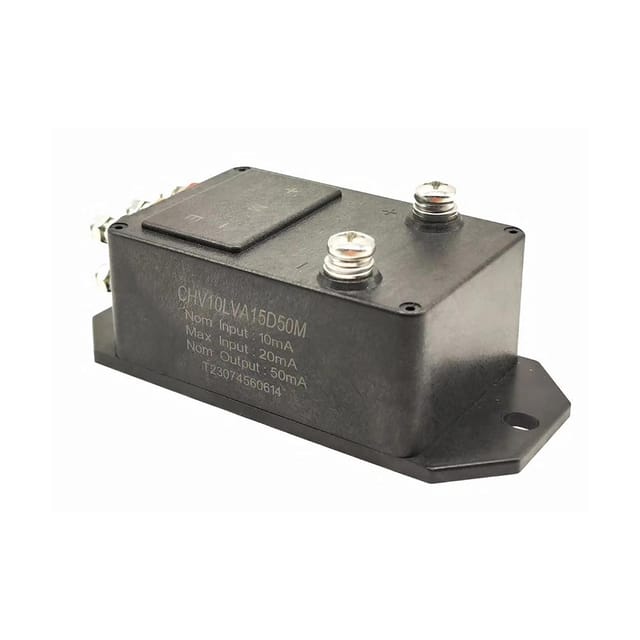

1 xHall Effect Voltage Sensor – CHV10LVA15D50 (Measuring range 0～20mA)
