This current transducer features closed-loop (compensated) measurement with a DC ±12～±15 V supply voltage. It accurately measures DC, AC, and pulse currents with galvanic isolation. It offers high accuracy, good linearity, easy installation, low temperature drift, and optimized response time with high immunity to interference.

Note: If you require customized products, please feel free to contact us at [email protected].

Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product. The actual product may vary in slight variation with the image shown.

Features:

1. Closed- loop (compensated) hall effect current mode voltage transducer
2. The output from the voltage sensor can be expressed as a voltage by passing it through a resistor.
3. Input voltage can be expressed as a current by passing it through a input resister.
4. It provides accurate electronic measurement of DC AC or pulse and pulsed voltage.
5. Supply voltage: DC±12～±15
6. High accuracy
7. Very good linearity
8. Easy installation
9. Low-temperature drift
10. Optimized response time
11. High immunity to external interference

Applications:

1. AC variable speed drives and servo motor drives
2. Static converters for DC motor drives
3.  Variable speed drives
4. Power supplies for welding applications
5. Battery supplied applications
6. Uninterruptible Power Supplies (UPS)
7. Switched Mode Power Supplies

Package Includes:

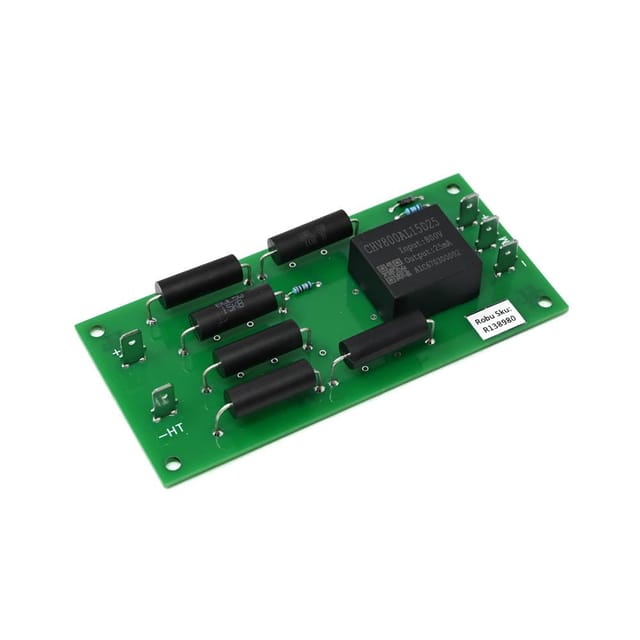

1 x Hall Effect Voltage Sensor – CHV800AL15D25 (Measuring range 0～1600V)
