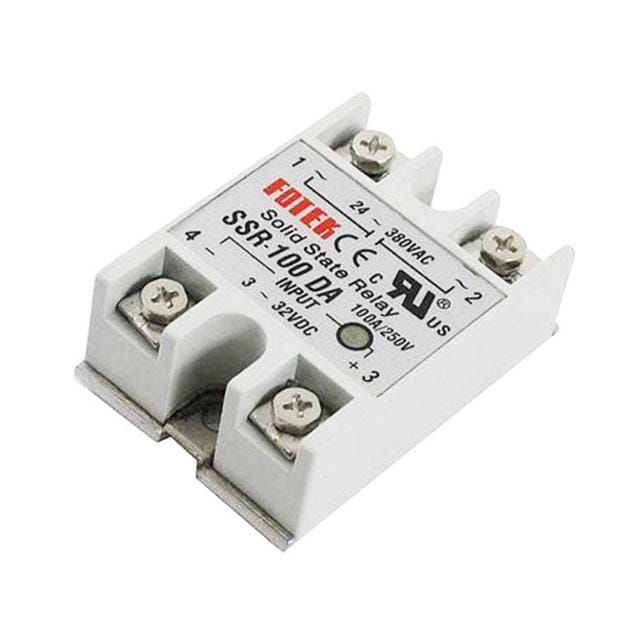

This is DC To AC SSR-100DA Solid State Relay Module 3-32VDC/24-380VAC 100A. A solid state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon controlled rectifier, or MOSFET transistor to switch the load.

This SSR-100DA Relay Module can switch current loads of up to 100A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Features :

1. Long service life and high reliability
2. Reduced electromagnetic interference
3. Highly reliable, compact size designed to offer users maximum simplicity.

Package Includes :

1 x DC To AC SSR-100DA Solid State Relay Module
