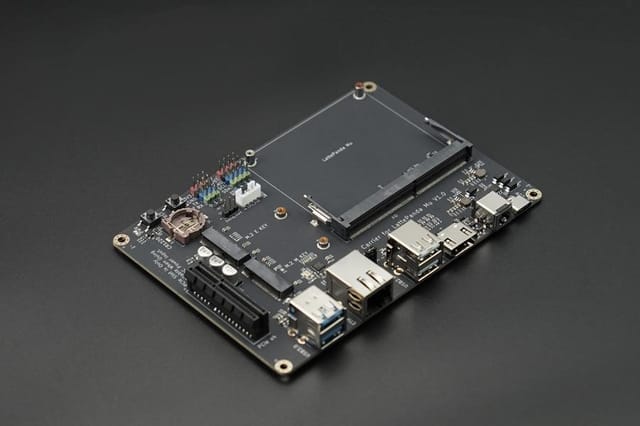

This lite carrier board(Base Board) is specifically designed for the LattePanda Mu computer-on-modules. Together with the LattePanda Mu, this carrier board forms a comprehensive development platform, akin to a Single Board Computer (SBC). It incorporates the most frequently used interfaces such as USB 3.0, Ethernet, PCIe 3.0, M.2 M key, M.2 E key, HDMI, and more. This allows for the connection of a variety of external devices and modules, enabling swift verification and testing of diverse design solutions, thus reducing the product development cycle. It is ideally suited for application in embedded system design.

Internal Interfaces

1. PCIe 3.0 x4 slot (only available when using 12V power supply)
2. M.2 M Key 2230 (PCIe 3.0 x1)
3. M.2 E Key 2230 (PCIe 3.0 x1, USB2.0)
4. RTC battery socket (CR1220 3V)
5. CPU fan socket
6. Gravity-4P UART
7. Gravity-4P I2C

External Interfaces

1. USB 3.2 10Gbps x2
2. Gigabit Ethernet
3. USB 2.0 x2
4. HDMI 2.0
5. USB Type-C (for power supply only)
6. DC 5.5×2.5mm
7. Size: 3.5 inches, 146mm×102mm

Note:

1. It needs to be paired with the LattePanda Mu compute module to use.
2. Before plugging or unplugging LattePanda Mu, any cables, or internal interfaces, it is necessary to disconnect the power supply.
3. The PCIe slot of the lite carrier is available only when using a 12V power supply.

Feature:

1. Wide voltage input
2. Gigabit Ethernet
3. 2 x USB3.2 10Gbps, 2x USB 2.0
4. HDMI 2.0, supports 4K video output
5. PCIe 3.0 x4 expansion slot
6. Dual M.2 expansion slots
7. 3.5-inch embedded motherboard standard size
8. Open-source Design

Package Include:

1 x DFRobot Lite Carrier Board for LattePanda Mu Compute Module (USB 3.0, Ethernet, PCIe 3.0, M.2 M key, HDMI)
