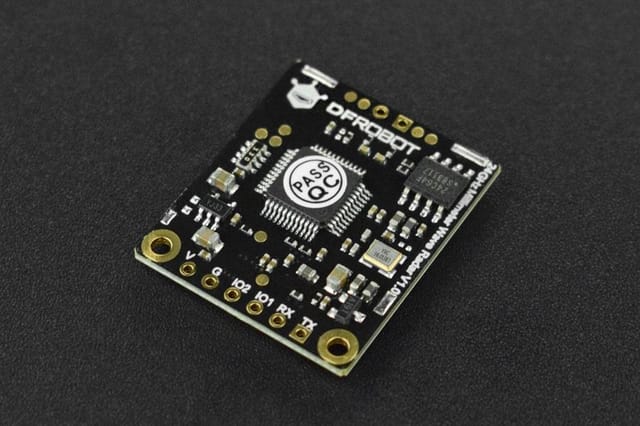

This is a DFRobot mmWave Radar – 24GHz Human Presence Detection Sensor (9 Meters), this 24GHz millimeter-wave radar sensor employs FMCW, CW multi-mode modulation and separate transmitter and receiver antenna structure. In working, the sensor first emits FMCW and CW radio waves to the sensing area. Next, the radio waves, reflected by all targets which are in moving, micro-moving, or extremely weak moving state in the area, are converted into electrical signals by the millimeter-wave MMIC circuit in the sensor system. After that, these signals will be sent to the processor and processed through the related signal and data algorithms. Then, the target information can be solved out.
This DFRobot mmWave – Human Presence Detection Sensor’s millimeter-wave radar can sense the human presence, stationary and moving people within the detection area. Moreover, it can even detect static or stationary human presence such as a sleeping person. There are two ways provided to output detection result: serial port and I/O port switch quantity. Besides that, the sensor module features strong sensing reliability, high sensitivity, small size, easy to be used or embedded in applications.

Useful Link:

Product wiki

Features

1. Human presence sensing: sense if there is human body in areas
2. I/O port switch quantity input and output control
3. Strong sensing reliability
4. Serial port input and output control
5. Strong anti-interference ability, not to be affected by snow, haze, temperature, humidity, dust, light, noise, etc.

Packages Includes:

1 x DFRobot mmWave Radar – 24GHz Human Presence Detection Sensor (9 Meters)
