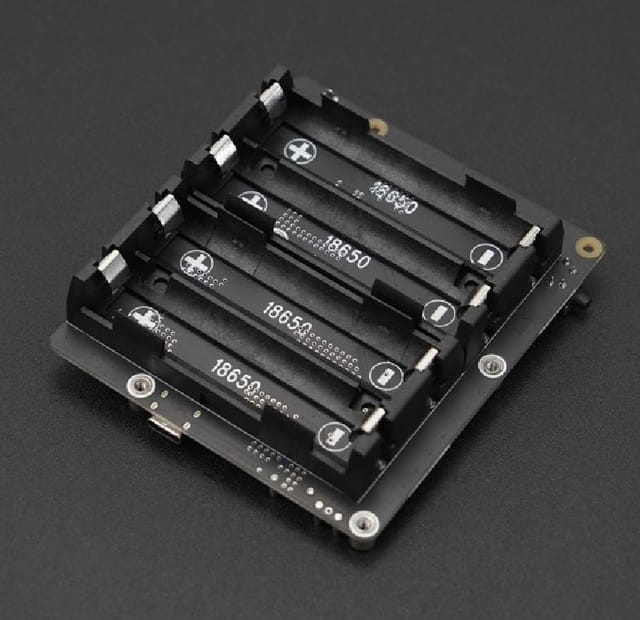

689d7593eec9d7443b863187 DFRobot Raspberry Pi 5 18650 Battery UPS HAT (5.1V 5A) https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/689d7594eec9d7443b863189/dfff-78.jpg

This is an uninterruptible power supply (UPS) expansion board specifically designed for Raspberry Pi 5 Single Board Computer. It can be used as a mobile power supply, providing a stable 5V output with a maximum of 5A.

Its enhanced power management system can intelligently monitor the power status of Raspberry Pi 5 and automatically cut off power when Raspberry Pi 5 shuts down, thereby increasing usage time and battery lifespan. It supports power outage and power adapter failure detection, and can automatically switch to UPS power supply in the event of a power outage or adapter failure.

It can power on automatically when power is restored and can be completely shut down through software and I2C battery level detection. The automatic shutdown voltage can be set. Additionally, it supports fast charging with a maximum charging voltage of 3A, enabling quick charging. It is suitable for mobile power supply for Raspberry Pi 5 in various applications such as smart cars, outdoor equipment setups, and detection scenarios.

Ports & Connectors

  1. DC power jack – 5.5×2.1mm
  2. 2-cell 18650 battery socket x2
  3. 5V Power output connector x2 – XH2.54 2-pin
  4. USB2.0 type-A power output socket x2
  5. External power button connector x1 – XH2.54-2P

Useful link:

For more information refer to the tutorial

Features:

Compatibility and Connection

  1. Compatible with Raspberry Pi 5 and Raspberry Pi USB-C Power Supply
  2. Pogo pin connection for powering the Pi, eliminating the need for additional cabling
  3. Connects to the Pi via convenient pogo pins
  4. XH2.54 connector available for adding your own power button

Power Management and Efficiency

  1. Provides up to 10 hours of continuous operation
  2. Supports a maximum current output of 5.1V 5000mA
  3. Integrated Advanced Power MOSFET to minimize power loss
  4. Integrated high-efficiency step-down DC-DC converter with up to 95% efficiency for optimal power conversion
  5. Provides up to 5.5A output current
  6. Wide operating input range of 6V to 18V
  7. Allows power input from various sources
  8. Seamless power switching between backup power and power adapter
  9. Advanced system power-path management to minimize frequent charging and discharging of batteries
  10. Ultra-low standby power consumption

Battery Management and Indicators

  1. Supports fast battery charging with a capacity of 3000mA
  2. Battery charging control can be managed via GPIO
  3. Provides protection against battery overcurrent and overvoltage
  4. Built-in protection against reverse connection of battery cells
  5. Integrated fuel-gauge systems for reading battery voltage and percentage
  6. On-board LEDs indicate battery charging and discharging levels
  7. Features a 4-cell 18650 battery holder
  8. Automatic safe shutdown when battery voltage is low (programmable)

Design and User Interface

  1. On-board push button performs the same actions as the Pi’s power button
  2. Automatically cuts off power when the Pi is shut down
  3. On-board LED indicates power status and Pi detection
  4. AC power loss and power adapter failure detection via GPIO
  5. Auto power-on when power is applied or restored
  6. Designed to be attached on the bottom, allowing the use of favorite HATs alongside it

Package Includes:

1 x Raspberry Pi 5 UPS

1 x Screw pack

TT-RB-R123330
in stockINR 7100
1 1

DFRobot Raspberry Pi 5 18650 Battery UPS HAT (5.1V 5A)

Sku: TT-RB-R123330
Be the first to review this product
₹7,100
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

This is an uninterruptible power supply (UPS) expansion board specifically designed for Raspberry Pi 5 Single Board Computer. It can be used as a mobile power supply, providing a stable 5V output with a maximum of 5A.

Its enhanced power management system can intelligently monitor the power status of Raspberry Pi 5 and automatically cut off power when Raspberry Pi 5 shuts down, thereby increasing usage time and battery lifespan. It supports power outage and power adapter failure detection, and can automatically switch to UPS power supply in the event of a power outage or adapter failure.

It can power on automatically when power is restored and can be completely shut down through software and I2C battery level detection. The automatic shutdown voltage can be set. Additionally, it supports fast charging with a maximum charging voltage of 3A, enabling quick charging. It is suitable for mobile power supply for Raspberry Pi 5 in various applications such as smart cars, outdoor equipment setups, and detection scenarios.

Ports & Connectors

  1. DC power jack – 5.5×2.1mm
  2. 2-cell 18650 battery socket x2
  3. 5V Power output connector x2 – XH2.54 2-pin
  4. USB2.0 type-A power output socket x2
  5. External power button connector x1 – XH2.54-2P

Useful link:

For more information refer to the tutorial

Features:

Compatibility and Connection

  1. Compatible with Raspberry Pi 5 and Raspberry Pi USB-C Power Supply
  2. Pogo pin connection for powering the Pi, eliminating the need for additional cabling
  3. Connects to the Pi via convenient pogo pins
  4. XH2.54 connector available for adding your own power button

Power Management and Efficiency

  1. Provides up to 10 hours of continuous operation
  2. Supports a maximum current output of 5.1V 5000mA
  3. Integrated Advanced Power MOSFET to minimize power loss
  4. Integrated high-efficiency step-down DC-DC converter with up to 95% efficiency for optimal power conversion
  5. Provides up to 5.5A output current
  6. Wide operating input range of 6V to 18V
  7. Allows power input from various sources
  8. Seamless power switching between backup power and power adapter
  9. Advanced system power-path management to minimize frequent charging and discharging of batteries
  10. Ultra-low standby power consumption

Battery Management and Indicators

  1. Supports fast battery charging with a capacity of 3000mA
  2. Battery charging control can be managed via GPIO
  3. Provides protection against battery overcurrent and overvoltage
  4. Built-in protection against reverse connection of battery cells
  5. Integrated fuel-gauge systems for reading battery voltage and percentage
  6. On-board LEDs indicate battery charging and discharging levels
  7. Features a 4-cell 18650 battery holder
  8. Automatic safe shutdown when battery voltage is low (programmable)

Design and User Interface

  1. On-board push button performs the same actions as the Pi’s power button
  2. Automatically cuts off power when the Pi is shut down
  3. On-board LED indicates power status and Pi detection
  4. AC power loss and power adapter failure detection via GPIO
  5. Auto power-on when power is applied or restored
  6. Designed to be attached on the bottom, allowing the use of favorite HATs alongside it

Package Includes:

1 x Raspberry Pi 5 UPS

1 x Screw pack
