The Ultrasonic ToF Material Detection Sensor is a compact, ultra-low-power sensor designed for identifying hard and soft materials within a 2–10 cm range. Utilizing ultrasonic time-of-flight technology, it distinguishes surface types by detecting differences in echo energy. Ideal for intelligent robotic cleaning systems, it features a 45° FOV, UART/IO communication, and IP54 protection. Lightweight and reliable, it offers easy integration into embedded applications for smart material recognition.

Features :

1. Ultrasonic time-of-flight technology
2. Small size and lightweight (1.0g)
3. Low power consumption (8mA operating)
4. 45° FOV for wide material detection coverage
5. Easy integration via UART or IO interface
6. High reliability with ESD protection (15KV)
7. IP54 rated for basic environmental protection
8. Designed for intelligent cleaning and automation
9. Start-up Current: 50mA
10. Driving Frequency: 175KHz
11. Detection Frequency: 100Hz
12. Lifetime: 3000h
13. EDS Protection Level: 15KV
14. Protection Level: IP54
15. Communication Mode: UART/IO

Applications:   Intelligent Cleaning

Package Includes :

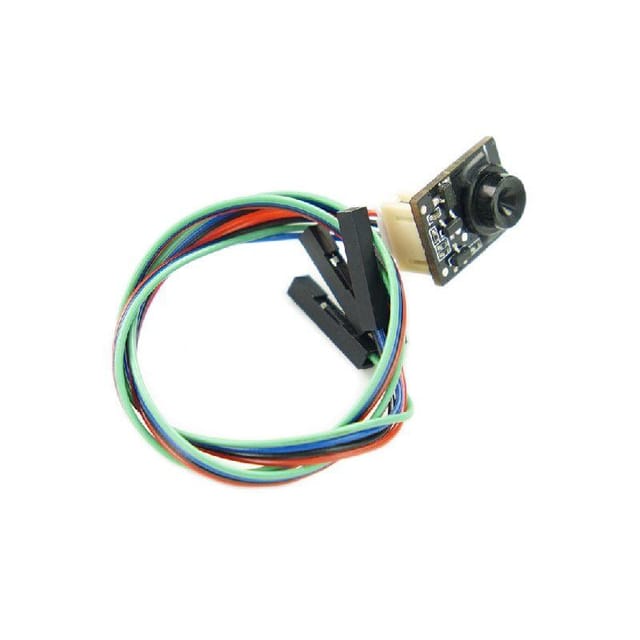

1 x Ultrasonic Material Detection Sensor
1 x ZH1.5T-4P DuPont Connector
