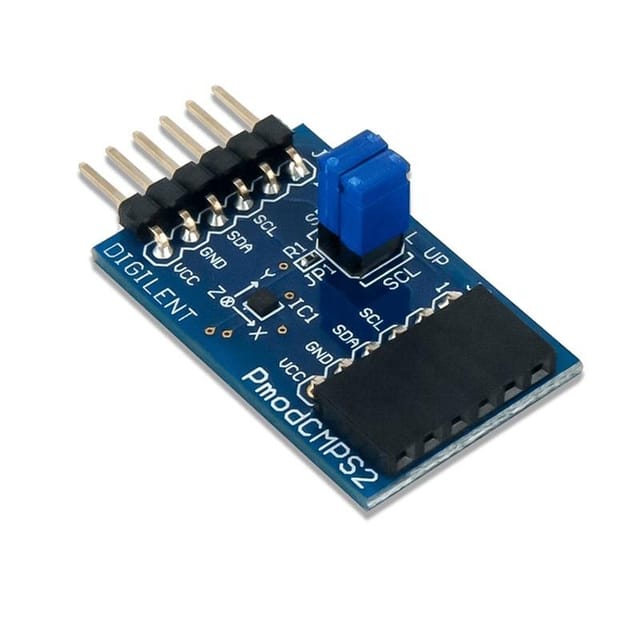

The Digilent Pmod CMPS2 is a digital compass module using Memsic’s MMC34160PJ magnetometer. The local magnetic field strength can be measured in a ±16 Gauss range with a heading accuracy of 1° and up to 0.5 mG of resolution.

Features:

1. Low noise 3-axis digital compass
2. 0.5 milligauss field resolution in ±16 Gauss fields
3. I2C Slave, FAST (≤400 kHz) mode
4. Optional pull-up resistors for SCL and SDA pins
5. 1° heading accuracy
6. Small PCB size for flexible designs 0.8″ × 1.25″ (2.0 cm × 3.2 cm)
7. 6-pin Pmod connector with I²C interface
8. Pass-through Pmod host port for daisy chaining
9. Follows Digilent Pmod Interface Specification 1.1.0
10. Library and example code available in resource center

Package Includes:

1 x Digilent Pmod CMPS2: 3-Axis Compass
