Diodes Incorporated DMN1029UFDB-7DITR-ND,DMN1029UFDB-7DICT-ND,DMN1029UFDB-7DIDKR-ND
Sku: TT-DKEY-DMN1029UFDB-7DITR-ND,DMN1029UFDB-7DICT-ND,DMN1029UFDB-7DIDKR-ND
₹46.08
Features
- Shipping in 10-12 Working Days
Description of product

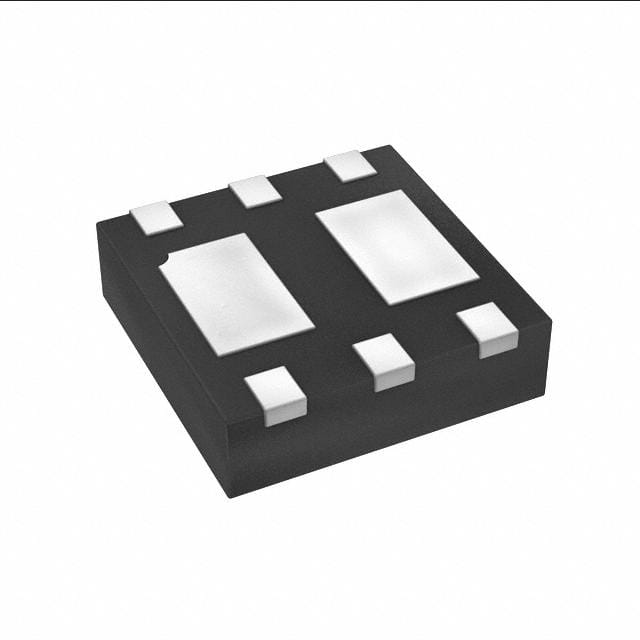

MOSFET 2N-CH 12V 5.6A 6UDFN
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 5.6A |
| Rds On (Max) @ Id, Vgs | 29mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 19.6nC @ 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 914pF @ 6V |
| Power - Max | 1.4W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-6 (Type B) |
| Grade | - |
| Qualification | - |
