Diodes Incorporated DMN3135LVT-7DITR-ND,DMN3135LVT-7DICT-ND,DMN3135LVT-7DIDKR-ND
Sku: TT-DKEY-DMN3135LVT-7DITR-ND,DMN3135LVT-7DICT-ND,DMN3135LVT-7DIDKR-ND
₹63.36
Features
- Shipping in 10-12 Working Days
Description of product

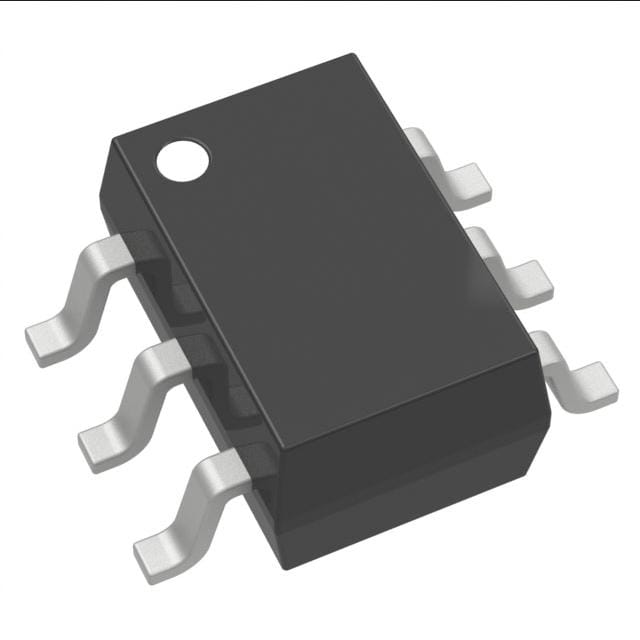

MOSFET 2N-CH 30V 3.5A TSOT26
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 3.1A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.1nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 305pF @ 15V |
| Power - Max | 840mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-26 |
| Grade | - |
| Qualification | - |
