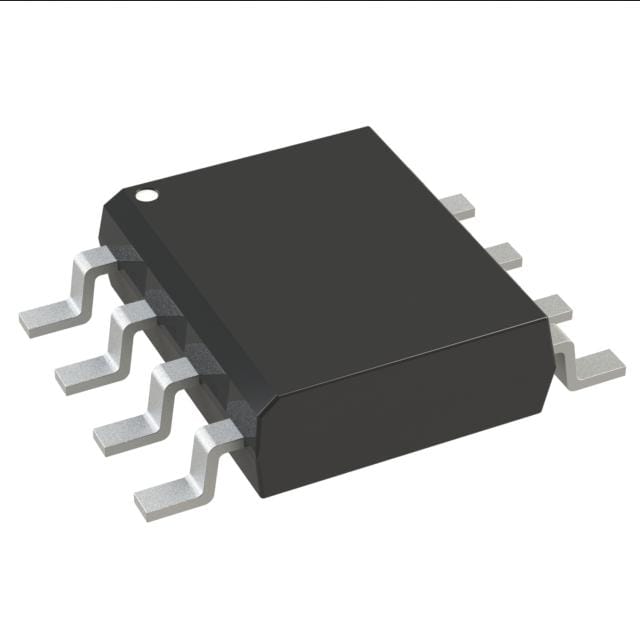

Diodes Incorporated DMP4025LSD-13DITR-ND,DMP4025LSD-13DICT-ND,DMP4025LSD-13DIDKR-ND
Sku: TT-DKEY-DMP4025LSD-13DITR-ND,DMP4025LSD-13DICT-ND,DMP4025LSD-13DIDKR-ND
₹132.48
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2P-CH 40V 6.9A 8SO
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 6.9A |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 33.7nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1640pF @ 20V |
| Power - Max | 1.8W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Grade | - |
| Qualification | - |
