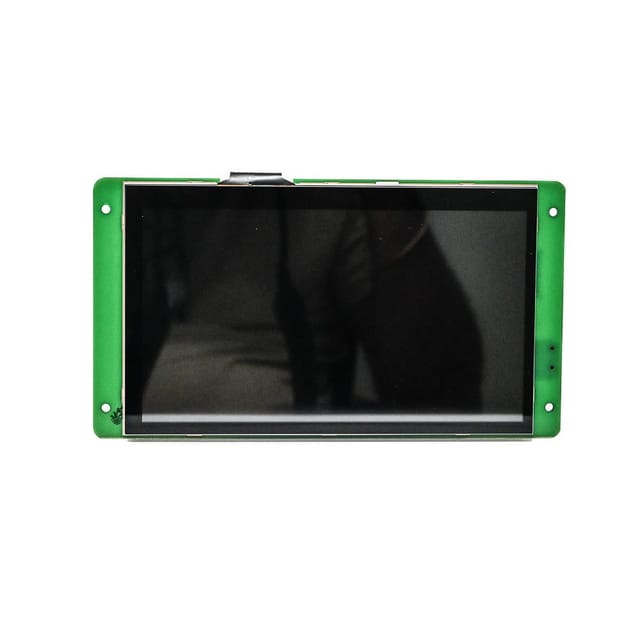

The DWIN DMG80480C070_04WTC – 7 Inch HMI LCD Display Touch Panel Model:DMG80480C070_04W(Commercial grade) is developed by DWIN. The NOR Flash memory in the display is available to store the user database.

The LCD is integrated with a running DGUS II system, a GUI (Graphical User Interface) development software. The pre-installed UI user interface development software can be used to develop your own design and customised features like buttons, text display, graph and slider etc. The T5L1 DWIN development software is a human-machine interface dedicated to ASIC designed by DWIN Technology for AIoT application applications. This software is based on a T5L chip that is a low-power, cost-effective dual-core 8051 processor.

Features:

• Based on T5L0, running DGUS II system, commercial grade
• 7.0-inch, 800×480 pixels resolution, 262K colors, TV-TN-TFT-LCD
• Capacitive touch screen
• TTL/CMOS interface; 10Pin_1.0mm connection wire
• Download via SD card or on-line serial port
• Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required
• Dual Development System:DGUSⅡ/TA(Instruction set)
• TV viewing angle, 70/70/40/30（L/R/U/D)
• With GUI&OS dual-core,GUI with rich controls,DWIN OS kernel is open to the user for the second development,via DWIN OS language or KEIL C51

For more technical details, please refer datasheet.

Package Includes:

1 x DWIN DMG80480C070_04WTC – 7 Inch HMI LCD Display Touch Panel Model:DMG80480C070_04W(Commercial grade)
