E103-1W08 is a 2.4G-based WIFI-to-serial port module independently developed by Chengdu Yixinte, with the most WIFI. The large transmission power can reach 10dBm, and this module has a built-in ARM Cortex*-M3 application processor and And ARM Cortex*-MO Link Controller, to achieve the separate management of the application layer and the connection layer, performance Stable and reliable. E103-W08 functionally supports 802.11b protocol: supports WPA and WPA2 encryption methods to meet a variety of standards Wireless communication scenarios, as well as a variety of application protocols, can meet the industrial needs for tcp, http, and mqtt, At the same time, it has industry-common automatic connection, boot transparent transmission, and parameter configuration in addition to AT instructions in the distribution network. Support BLE fast and convenient distribution network. In terms of power consumption, multi-level adjustment can be achieved, and users can set it according to their own needs.

The corresponding power consumption level, the lowest power consumption can reach 120uA while maintaining the wifi connection can be communicated, E103-W08 It is an industrial-grade WIFI module that combines simplicity and ease of use with high reliability and high performance. E103-W08 is divided into two versions on the hardware. Only the PCB antenna is E103-W08A, and only the IPX antenna is connected. The mouth is E103-W08B.In addition to the different hardware and antenna, the firmware of the two products are the same.

Features:

1. Support IEEE802.11 b standard
2. WIFI-enabled station
3. Support WPA and WPA2 encryption methods
4. Support conventional TCP, HTTP client, MQTT and other network communications
5. Support AT command parameter configuration
6. Support BLE fast network distribution
7. Support multiple connections, up to 4 socket connections are supported
8. Support BLE fast distribution network connection to AP
9. Support manual connection and manual disconnection of AP
10. Support AT command configuration parameters

Package Includes:

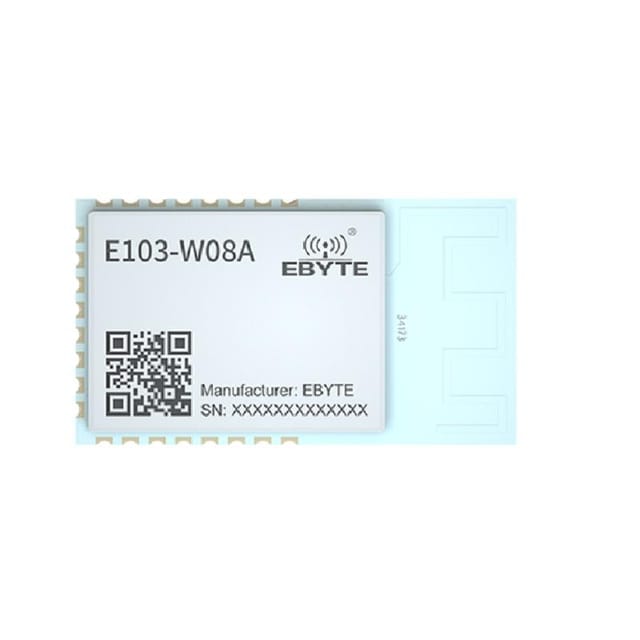

1 x Ebyte E103-W08A SMD WiFi Modules ROHS
