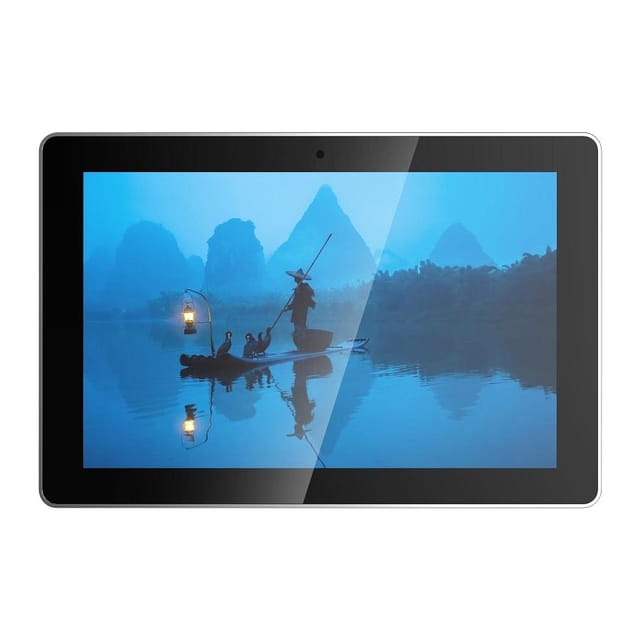

The EDATEC ED-HMI3020-101C-04001-P is a state-of-the-art 10.1-inch industrial Human Machine Interface (HMI) that leverages the advanced capabilities of the Raspberry Pi 5 platform. Designed for demanding industrial environments, this HMI integrates several key features to enhance functionality and reliability.

Equipped with Raspberry Pi 5, it boasts a powerful computing performance with 4GB of RAM and a 128GB SSD, ensuring fast data access and ample storage capacity for industrial applications. This configuration supports complex tasks such as data processing, monitoring, and control with efficiency and precision.

Note: For more technical Details go through Datasheet in the Attachment section

Features:

1. 10.1″ TFT, resolution 1280×800, multi-point capacitive touch screen
2. Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
3. Up to 8GB LPDDR4X RAM
4. Support Micro SD Card and M.2 NVMe SSD storage expansion
5. 1 x Gigabit ethernet port with optional PoE
6. Optional 8-megapixel front camera
7. 2 x USB 3.0, 2 x USB 2.0, 1 x RS232, 1 x RS485 and 1 x Buzzer
8. Dual 4Kp60 HDMI display output
9. Stereo audio input and output with separately 3.5mm audio jack, built-in speaker
10. 5V DC power input via USB-C, support ON/OFF power button
11. Built-in RTC, support SuperCAP and CR1220 battery backup
12. Aluminum CNC + sheet metal case, fanless design, providing excellent cooling performance

Package Includes:

1 x EDATEC ED-HMI3020-101C-04001-P 10.1-inch Industrial HMI Based on Raspberry Pi 5 Audio input & output,RS232 & 485, with 128G SSD,with Pi5 4GB, with PoE
