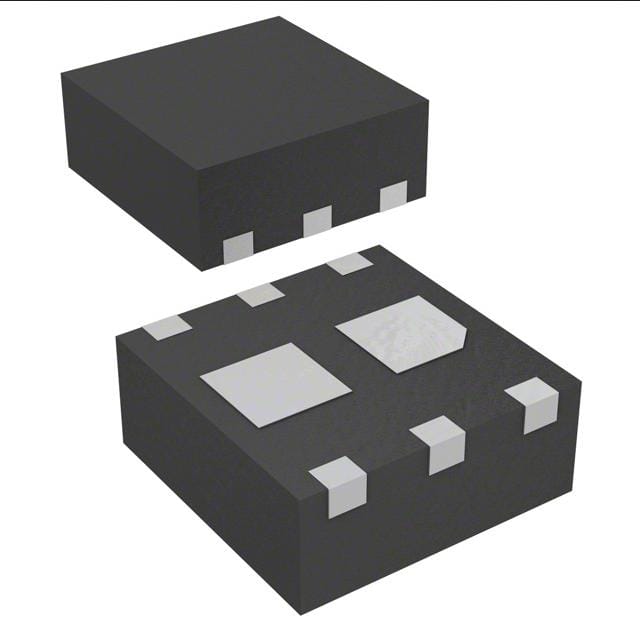

onsemi FDMA1032CZTR-ND,FDMA1032CZCT-ND,FDMA1032CZDKR-ND
Sku: TT-DKEY-FDMA1032CZTR-ND,FDMA1032CZCT-ND,FDMA1032CZDKR-ND
₹144
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET N/P-CH 20V 3.7A 6MICROFET
Product Attributes:
| Series | PowerTrench® |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A, 3.1A |
| Rds On (Max) @ Id, Vgs | 68mOhm @ 3.7A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 340pF @ 10V |
| Power - Max | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-MicroFET (2x2) |
| Grade | - |
| Qualification | - |
