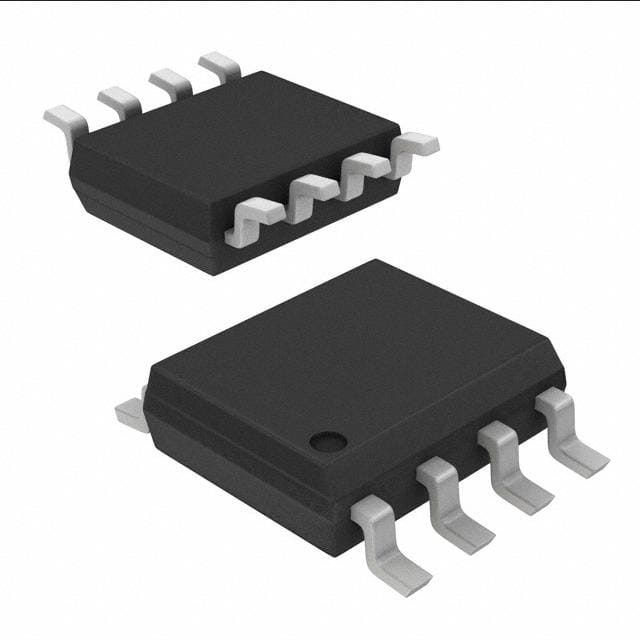

onsemi FDS9926ATR-ND,FDS9926ACT-ND,FDS9926ADKR-ND
Sku: TT-DKEY-FDS9926ATR-ND,FDS9926ACT-ND,FDS9926ADKR-ND
₹99.36
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N-CH 20V 6.5A 8SOIC
Product Attributes:
| Series | PowerTrench® |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 6.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 650pF @ 10V |
| Power - Max | 900mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Grade | - |
| Qualification | - |
