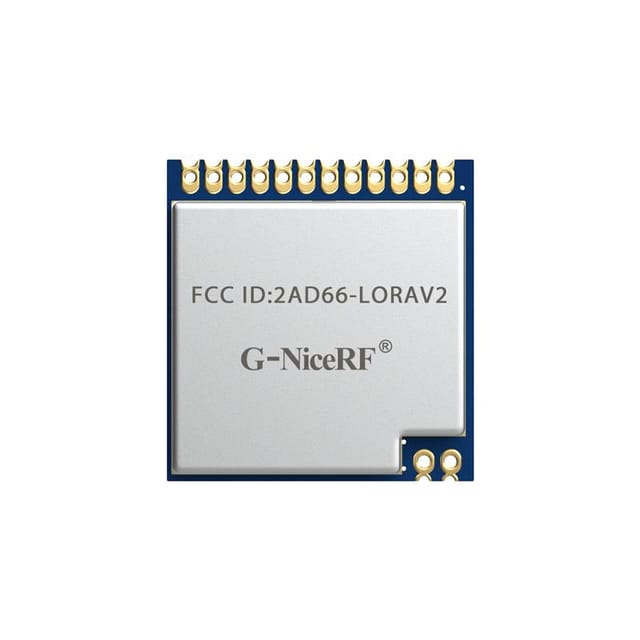

The G-NiceRF LoRa1276-915  module integrates the Semtech SX1276 RF transceiver chip, utilizing LoRa Spread Spectrum modulation for enhanced communication range and receiving sensitivity, far outperforming traditional FSK and GFSK modulation technologies. The module is designed to operate in the 915 MHz frequency range, though it is customizable from 137 MHz to 1020 MHz. With strong anti-interference performance, the LoRa1276-915 is ideal for use in crowded frequency environments, as multiple signals will not disrupt each other. G-NiceRF LoRa1276-915 also features an integrated antenna switch controlled by the chip, simplifying design and reducing the need for external components.

Features:

1. Frequency Range: 915 MHz (customizable from 137-1020 MHz)
2. Modulation: LoRa, FSK, GFSK
3. Sensitivity: -139 dBm @ LoRa
4. Max Output Power: 20 dBm (100 mW)
5. Low Current Consumption: 10.8 mA receiving, <1.5 µA in sleep mode
6. Data Rate: 1.2-300 Kbps (FSK), 0.018-37.5 Kbps (LoRa)
7. Built-in Features: ESD protection, 256 bytes FIFO, CRC, frequency hopping
8. Temperature Sensor & Low Battery Indicator: Integrated
9. Operating Temperature: -40°C to +85°C
10. Certifications: FCC ID certified, RoHS compliant
11. Applications: Remote meter reading, industrial control, home automation, sensor networks, and more

Package Includes:

1 x G-NiceRF LoRa1276-915 : FCC ID Certified 915MHz SX1276 Front End LoRa Module
