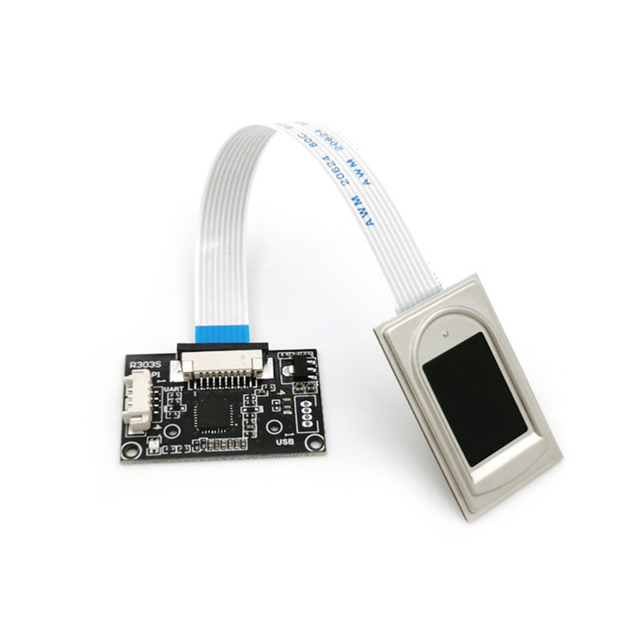

The R304S Fingerprint Module offers advanced biometric security with USB 2.0 and UART (3.3V-TTL) interfaces. It features a high resolution of 508 DPI and a large fingerprint capacity of 1000. The compact module size of 20.4 x 33.4 mm and an effective collection area of 11 x 15 mm make it ideal for various applications. It operates at DC 4.2-6.0V with a working current of less than 55mA and a sensor array of 208 x 288 pixels.

Features:

1. Integrated image collection and algorithm chip
2. High recognition rate for various finger conditions
3. Suitable for embedding in access control, attendance, and security systems
4. Compact design with low power consumption
5. Large sensor array for detailed fingerprint capture
6. Reliable performance in diverse environmental conditions
7. Fingerprint capacity:1000·Fingerprint module size: 20.4 x 33.4 (mm)
8. Effective collection area: 11 x 15 (mm)
9. Sensor Array: 208 x 288 pixe

Package Includes:

1 x R304S Fingerprint Module

1 x 15cm 4Pin Serial Cable
