5aba2b6e5fe7ae3048e900d3 Heart Rate 3 click https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aba2b6e5fe7ae3048e900d3/images/5aba2b6e5fe7ae3048e900d4/5aba24955fe7ae3048e8ed18/5aba24955fe7ae3048e8ed18.jpg

Description

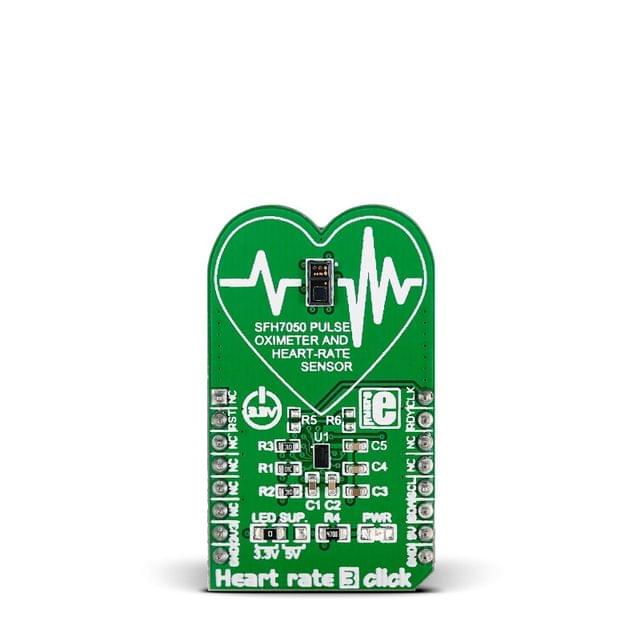

The SFH7050 multichip package contains 3 LEDs and one photodiode separated with a light barrier to prevent optical crosstalk. When the three LEDs shine through a subject’s finger, some of the light is absorbed by the pulsating blood.

The analog reading from the SFH7050 is forwarded to the AFE chip that is able to derive pulse readings from the intensity of the reflected light. AFE4404 is highly-configurable and adaptable for different usage scenarios (different lighting conditions or skin tones) making Heart rate 3 click a robust heart rate monitoring solution. The board communicates with the target MCU through the mikroBUS™ I2C interface, with additional functionality provided by RST, CLK and RDY pins. Heart rate 3 click works on a 3.3V power supply, but an onboard jumper allows you to set the voltage for driving the SFH7050 LEDs at either 3.3V or 5V.

Specification

Type Biomedical
Applications Optical heart rate monitoring
On-board modules OSRAM’s SFH7050 pulse oximetry module, heart rate monitoring module, TI AFE4404 (analong-front-end) IC
Key Features TI AFE4404 AFE (analog-front-end)
Key Benefits Separate optical and signal processing circuitry
Interface GPIO,I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

    TT-MK-MIKROE-2036
    in stock INR 4671.03
    MIKROELECTRONICA
    1 1

    Heart Rate 3 click

    Sku: TT-MK-MIKROE-2036
    ₹4,671.03


    Sold By: tenettech
