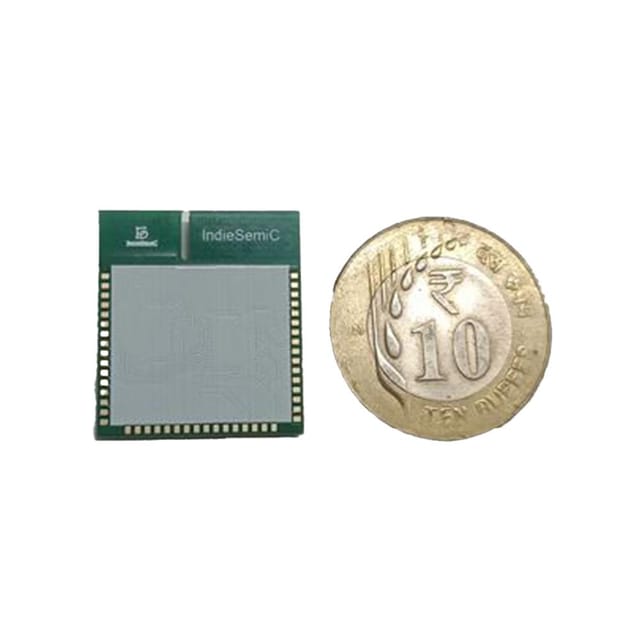

The ISC-nRF5340-nRF7002-A is a powerful, highly flexible, ultra-low power Bluetooth Low Energy and Wifi 6 module using Nordic nRF5340 and nRF7002 SoC solution developed by Indiesemic Pvt Ltd. WiFi + BLE Combo module that supports WiFi6 dual-frequency connection, 2.4G and 5G 1TR1, Maximum WiFi speed 86mbps, output Maximum power up to 3dBm, receiving current in 2.4G frequency region is 56mA, while in 5G frequency region is 58mA, meanwhile supports BLE master/slave mode and pass through mode, adopts WiFi and BLE independent design, no crosstalk.

Features:

1. Nordic nRF7002 SoC.
2. Low-power and secure Wi-Fi for the IoT
3.  WiFi CERTIFIED 6TM, WiFi CERTIFIEDTM a/b/g/n/ac, WiFi Enhanced OpenTM
4. 2.4 GHz and 5 GHz dual-band or 2.4 GHz only
5. TX power from +21 dBm.
6. 191 mA @ max output power, 2.4 GHz, MCS7 ; 260 mA @ max output power, 5 GHz, MCS7
7. 4.8 mA peak currentin TX (0 dBm)
8. 60 mA RX 2.4 GHz, 56 mA
   RX 5 GH






Package Includes:

1 x Indiesemic ISC­NRF5340­7002­A An advanced multiprotocol ultra-low power BLE & Wi-Fi 6 Combo module — V0.2
