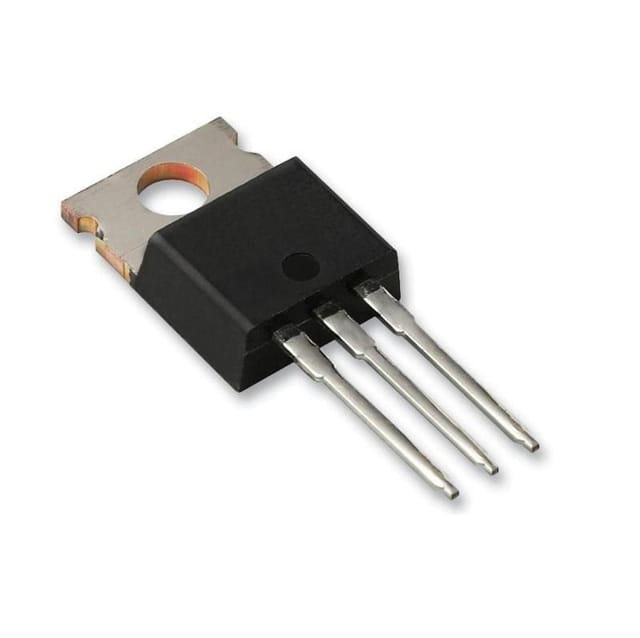

6895ba5fc79eac810c3e5863 IRF540N (TO-220-3) MOSFET https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/6895ba60c79eac810c3e5865/robu-3-9.jpg
The IRF540N (TO-220-3) MOSFET from International Rectifier is 100V single N channel HEXFET power MOSFET in TO-220AB package. This MOSFET features extremely low on-resistance per silicon area, dynamic dv/dt rating, rugged, fast switching and fully avalanche rated as a result, power MOSFET is well known to provide extremely efficiency and reliability which can be used in wide variety of applications.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.

 Features:

  1. Drain to source voltage Vds is 100V
  2. Gate to source voltage is ±20V
  3. On Resistance Rds(on) of 44mohm at Vgs of 10V
  4. Power dissipation Pd of 130W at 25°C
  5. Continuous drain current Id of 33A at Vgs 10V and 25°C
  6. Operating junction temperature range from -55°C to 175°C
  7. Applications: Power Management, Industrial, Portable Devices, Consumer Electronics.

Package Includes:

1 x IRF540N (TO-220-3) MOSFET

TT-RB-162172
in stockINR 32
1 1

IRF540N (TO-220-3) MOSFET

Sku: TT-RB-162172
Be the first to review this product
₹32
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The IRF540N (TO-220-3) MOSFET from International Rectifier is 100V single N channel HEXFET power MOSFET in TO-220AB package. This MOSFET features extremely low on-resistance per silicon area, dynamic dv/dt rating, rugged, fast switching and fully avalanche rated as a result, power MOSFET is well known to provide extremely efficiency and reliability which can be used in wide variety of applications.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.

 Features:

  1. Drain to source voltage Vds is 100V
  2. Gate to source voltage is ±20V
  3. On Resistance Rds(on) of 44mohm at Vgs of 10V
  4. Power dissipation Pd of 130W at 25°C
  5. Continuous drain current Id of 33A at Vgs 10V and 25°C
  6. Operating junction temperature range from -55°C to 175°C
  7. Applications: Power Management, Industrial, Portable Devices, Consumer Electronics.

Package Includes:

1 x IRF540N (TO-220-3) MOSFET
