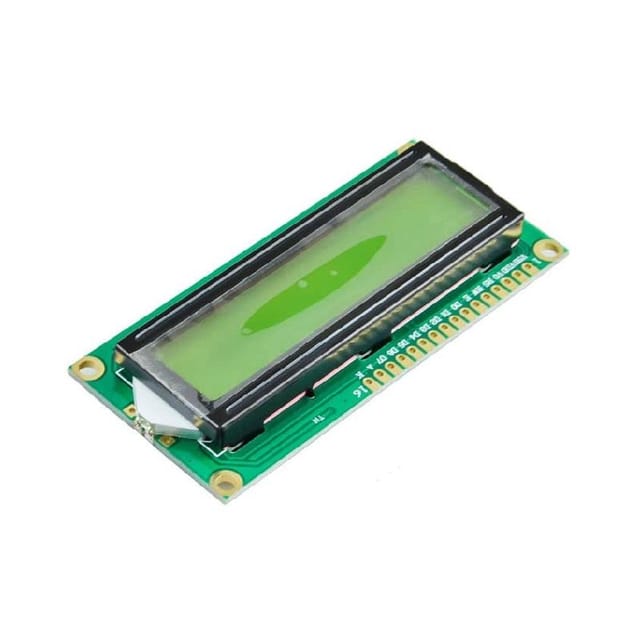

LCD1602 16×2 16 PIN Display – Yellow Backlight screen is a basic alphanumeric display featuring 16 characters across 2 lines, with white text on a blue background. It utilizes the well-known HD44780 parallel interface chipset, and the interface code is easily available. To connect to this LCD screen, a minimum of 6 general I/O pins are needed. It includes an LED backlight and supports both 4-bit and 8-bit operating modes.

Features:

1. Display Contents :16 * 2 Characters (5*8 dots )
2. Driving Scheme : 1/16Duty; 1/5Bias
3. Viewing Direction :6 0’ clock
4. Driver IC :AIP31066
5. Interface :Parallel
6. Backlight :white/Yellow-Green
7. Operating Temperature :-20 C－﹢70 C
8. Storage Temperature :-30 C－﹢80 C
9. RoHS Compliant

Package Include:

1 x LCD1602 16×2 16 PIN Display – Yellow Backlight screen
